Brand: Belden
|
SKU:
B83049-0/2
Belden 83049 0101000 | Lead Wire, #22 Stranded SPC, TFE Insulation, AWM 1371
Regular price
$2.68
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 83049 0101000 | Lead Wire, #22 Stranded SPC, TFE Insulation,...
Regular price
$2.68
Unit price
Description
Description

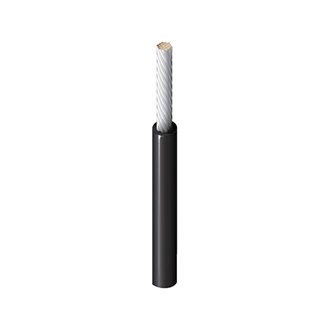

Belden 83049 0101000 | Lead Wire, #22 Stranded SPC, TFE Insulation, AWM 1371
High Temp Plastic Lead Wire, 22AWG (7x30) Silver Plated Copper, TFE Insulation, AWM 1371 105C TYPE ET MIL-W-16878/6 250V 200C.
Specifications
Specifications
Belden - 83049 0101000 - Specifications
| Stranding | 7x30 |
|---|---|
| Material | SC - Silvered Copper |
| No. of Conductors | 1 |
| Bulk Cable Weight | 3 lbs/1000ft |
| Min. Bend Radius/Minor Axis | 0.17 in |
| Conductor Material | Silver Plated Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Stranding | 7 Strands In Each Conductor |
| Insulation Color | Black |
| Insulation Material | Tfe-Tetrafluoroethylene &Amp Ptfe |
| Mil Spec | Mil-W-16878/6 (Type Et) |
| Product Type | M16878 |
| Rohs Compliant | Yes |
| Shielded | Not Shielded |
| Temperature Rating | 200 Degrees Centigrade (393 F) |
| Ul Style | Ul Type Awm, Style 1371 |
| UNSPC Code | 26121539 |
