Brand: Belden
|
SKU:
B83264

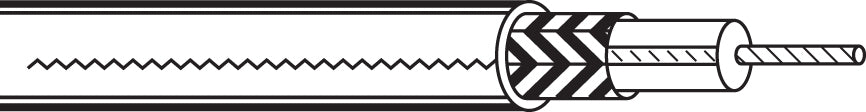

Belden 83264 0011000 | Coaxial Cable, RG179, 30 AWG, Stranded, 1000 ft. L, 7x38 Str
Regular price
$4,582.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 83264 0011000 | Coaxial Cable, RG179, 30 AWG, Stranded, 1000...
Regular price
$4,582.55
Unit price
Description
Description
Belden 83264 0011000 | Coaxial Cable, RG179, 30 AWG, Stranded, 1000 ft. L, 7x38 Str
Coaxial Cable; RG179; 30 AWG; Stranded; Silvered Copper Covered Steel; 1000 ft. Length; 7x38 Str; Brown FEP Jacket; 1000MHz; PTFE Insulation; 900 V; Braid; Silvered Copper Shield; -70 to +200 C; 17 lb.; 232 Ohm./1000 ft. DC
Specifications
Specifications
Belden - 83264 0011000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 83264 0011000 - Applications
- Aerospace, analog video
Belden - 83264 0011000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 83264 0011000 |
| Item Description | Coaxial Cable, RG179, 30 AWG, Stranded, 1000 ft. L, 7x38 Str |
| Bend Radius | 1 In. |
| Braid % | 94% Braid Coverage |
| Braid Material | Silver Coated Copper |
| Csa | Ft6 Horizontal Flame &Amp Smoke Test |
| Cable Jacket O.D. | 0.109 |
| Cable/Wire Type | Rg179 |
| Capacitance | 19.5 Pf/Ft. |
| Conductor Count | 1 Conductor |
| Conductor Diameter | 0.0370 In. |
| Conductor Material | Silver Plated Copper Clad Steel |
| Conductor Size | 30 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Dielectric Material | Fpe-Foamed (Cellular) Polyethylene |
| Flooded | No, Not Flooded Over Braid |
| Frequency Rating | 1000Mhz |
| Impedance | 75 Ohm |
| Insulation Diameter | 0.063 In. |
| Insulation Material | Tfe-Tetrafluoroethylene &Amp Ptfe |
| Jacket Color | Brown |
| Jacket Material | Fep-Fluorinated Ethylene Propylene |
| Jacket Rating | Cm, Cmg, Cmx |
| Length | 1000 Ft. |
| Mil-C-17 | M17/158-00001 |
| Major Market | Military/Aerospace/Defense |
| Manufacturer Listed Application | Aerospace, Analog Video, Sdi |
| Nom. O.D. (In.) | 0.109 |
| Nominal O.D. | 2.54 Mm |
| Notes/Special Features | M17/094-Rg179 |
| Outdoor | No, Not Outdoor Grade Material |
| Package Type | Crate Reel |
| Plenum | General Purpose (Cm, Cmg, Cmx) |
| Product Type | Mil-Spec Coaxial Cable |
| Pulling Force | 17 Lbs. |
| Rg Type | Rg-179 |
| Rating | M17 |
| Resistance | 232 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield Type | Double Braid Shield |
| Shield Material | 95% Silver Plated Copper Braid |
| Shield Type | Braid |
| Shield | Scc Braid |
| Spec/Stnd Nec | Ul Listed Art 800 Plenum |
| Temperature Rating - Max | 200 Deg C |
| Temperature Rating | -70 To 200 C |
| Voltage | 900 V |
| Weight Lbs./1,000 Ft. | 11 |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Aerial - When supported by messenger wire |
