Brand: Belden
|
SKU:
B83321E
Belden 83321E 009500 | Electronic, 2 C #18 Str SPC, TFE Ins, OA SPC Brd, TFE Jkt, MIL-W-16878/4 (Type E)
Regular price
$19.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 83321E 009500 | Electronic, 2 C #18 Str SPC, TFE Ins, OA SPC...
Regular price
$19.78
Unit price
Description
Description

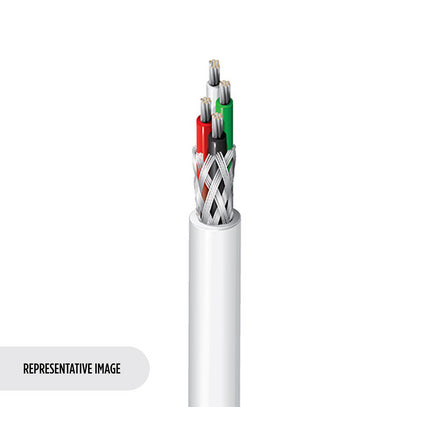

High Temperature Electronic, 2 Conductor 18AWG (19x30) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid(85%) Shield, TFE Outer Jacket, MIL-W-16878/4 (Type E)
Specifications
Specifications
Product Overview
| Suitable Applications | MIL-W-16878/4 (Type E) Spec; Extreme High/Low Temperature Environments; up to 600V analog signals & voltage control |
|---|
Mechanical Characteristics
| Max. Pull Tension | 79.2 lbs |
|---|---|
| Bulk Cable Weight | 27 lbs/1000ft |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Fire Resistance | IEC 60332-1-2 |
| NEMA Compliance | NEMA HP3 |
| Military Compliance | MIL-W-16878/4 (Type E except stranding), (insulated conductors) |
| CPR Euroclass | Eca |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
