Brand: Belden | SKU: B83337E-500

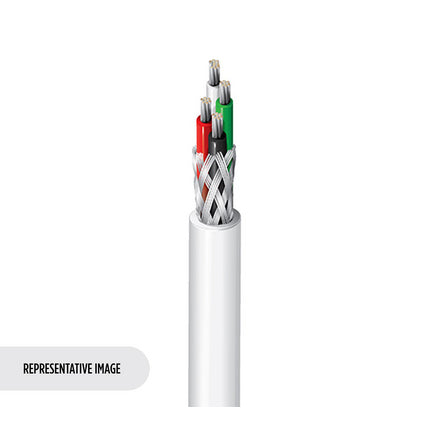

Belden 83337E 009500 | Electronic, 3 C #16 Str SPC, TFE Ins, OA SPC Brd, TFE Tape Jkt, MIL-W-16878/4 (Type E)

$26.10

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

High Temperature Electronic, 3 Conductor 16AWG (19x29) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid(85%) Shield, TFE Tape Outer Jacket, MIL-W-16878/4 (Type E)

Specifications

Product Overview

Suitable Applications	MIL-W-16878/4 (Type E) Spec; Extreme High/Low Temperature Environments; up to 600V analog signals & voltage control

Mechanical Characteristics

Max. Pull Tension	130.9 lbs
Bulk Cable Weight	45 lbs/1000ft

Standards and Compliance

Environmental Suitability	Indoor
Sustainability	CA Prop 65
Flammability / Fire Resistance	IEC 60332-1-2
NEMA Compliance	NEMA HP3
Military Compliance	MIL-W-16878/4 (Type E except stranding), (insulated conductors)
CPR Euroclass	Eca
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
