Brand: Belden
|
SKU:
B83350E-100

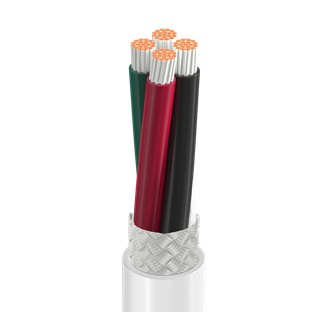

Belden 83350E 009100 | Electronic Cable, 4 Conductor #20 Stranded SPC, TFE Insulation, OA SPC Braid, TFE Jacket
Regular price
$25.06
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 83350E 009100 | Electronic Cable, 4 Conductor #20 Stranded S...
Regular price
$25.06
Unit price
Brand: Belden
|
SKU:
B83350E-100
Regular price
$25.06
Unit price
Description
Description
Belden 83350E 009100 | Electronic Cable, 4 Conductor #20 Stranded SPC, TFE Insulation, OA SPC Braid, TFE Jacket
High Temperature Electronic, 4 Conductor 20AWG (19x32) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid(85%) Shield, TFE Outer Jacket, MIL-W-16878/4 (Type E).
Specifications
Specifications
Belden - 83350E 009100 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 4 |
| Size | 20 AWG |
| Stranding | 19x32 |
| UL Temperature | 200°C |
| Stationary Min. | 1.83 in (46.5 mm) |
| Installation Min. | 1.83 in (46.5 mm) |
| Max. Pull Tension | 60 lbs (27 kg) |
| Bulk Cable Weight | 35 lbs/1000ft |
| Sustainability | CA Prop 65 |
| CPR Compliance | CPR Euroclass: Eca |
| NEMA Compliance | NEMA HP3 |
| Military Compliance | MIL-W-16878/4 (Type E except stranding), (insulated conductors) |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
