Brand: Belden
|
SKU:
B84316

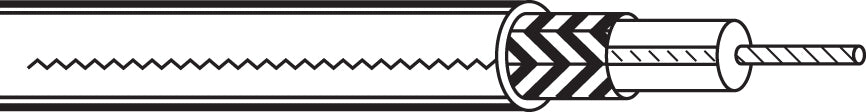

Belden 84316 0011000 | Coaxial Cable, RG136, 1000 ft. L, Braid, Brown, FEP Jacket
Regular price
$5,434.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 84316 0011000 | Coaxial Cable, RG136, 1000 ft. L, Braid, Bro...
Regular price
$5,434.85
Unit price
Description
Description
Belden 84316 0011000 | Coaxial Cable, RG136, 1000 ft. L, Braid, Brown, FEP Jacket
Coaxial Cable; RG136; 1000 ft. Length; Braid; Brown FEP Jacket; Silvered Copper Covered Steel; 26 AWG; PTFE Insulation; Silvered Copper Shield; 0.098 in. Nominal Outside Diameter; -70 to +200 C; 50 Ohm; Indoor/Outdoor; 1 in.
Specifications
Specifications
Belden - 84316 0011000 - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial and DS3 Cable
- Coaxial Cable
Belden - 84316 0011000 - Applications
- Aerospace wireless communication
Belden - 84316 0011000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 84316 0011000 |
| Item Description | Coaxial Cable, RG136, 1000 ft. L, Braid, Brown, FEP Jacket |
| Bend Radius | 1 In. |
| Braid % | 95% Braid Coverage |
| Braid Material | Silver Coated Copper |
| Cable Jacket O.D. | 0.098 |
| Cable/Wire Type | Rg136 |
| Capacitance | 29 Pf/Ft. |
| Coax Type | Rg316 |
| Conductor Count | 1 Conductor |
| Conductor Diameter | 0.0370 In. |
| Conductor Material | Silvered Copper Clad Steel |
| Conductor Size | 26 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Dielectric Material | Fpe-Foamed (Cellular) Polyethylene |
| Flooded | No, Not Flooded Over Braid |
| Frequency | 1000Mhz |
| Impedance | 50 |
| Indoor Or Outdoor Use | Indoor/Outdoor |
| Insulation Diameter | 0.06 In. |
| Insulation Material | Tfe-Tetrafluoroethylene &Amp Ptfe |
| Jacket Color | Brown |
| Jacket Material | Fep-Fluorinated Ethylene Propylene |
| Jacket Rating | Cm, Cmg, Cmx |
| Length | 1000 Ft. |
| Mil-C-17 | M17/113-Rg316 |
| Major Market | Military/Aerospace/Defense |
| Manufacturer Listed Application | Aerospace Wireless Communication, Transmission |
| Nom. O.D. (In.) | 0.098 |
| Nominal Cable Diameter | 0.098 In. |
| Nominal O.D. | 2.44 Mm |
| Notes/Special Features | M17/113-Rg316 |
| Operating Frequency | 1 To 3000Mhz |
| Outdoor | No, Not Outdoor Grade Material |
| Plenum | General Purpose (Cm, Cmg, Cmx) |
| Product Type | Mil-Spec Coaxial Cable |
| Pulling Tension | 27 Lb. |
| Rg Type | Rg-316 |
| Rating | M17 |
| Resistance | 82.5 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield Type | Braid Only |
| Shield Coverage | 95% |
| Shield Material | 95% Silver Plated Copper Braid |
| Shield Type | Silvered Copper Braid |
| Shield | Scc Braid |
| Spec/Stnd Nec | Ul Listed Art 725 Cl2 Plenum |
| Temperature Rating - Max | 200 Deg C |
| Temperature Rating | -70 To 200 Deg C |
| Tensile Strength | 27 Lbs. |
| Voltage Rating | 900 V |
| Voltage | 900 V |
| Weight Lbs./1,000 Ft. | 12 |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Aerial - When supported by messenger wire |
