Brand: Belden | SKU: B8443-DY0

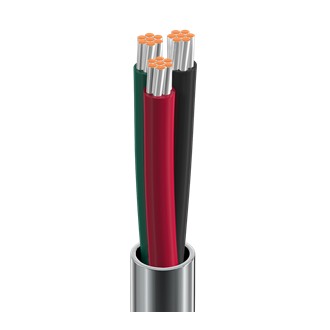

Belden 8443 0605000 | Electronic Cable, 3 Conductor #22 Stranded TC, PVC Insulation, PVC Jacket, CMG

$3.03

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Belden 8443 0605000 | Electronic Cable, 3 Conductor #22 Stranded TC, PVC Insulation, PVC Jacket, CMG

Electronic, 3 Conductor 22AWG (7x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG.

Specifications

Belden - 8443 0605000 - Specifications

Element	Conductor(s)
No. of Elements	3
Stranding	7x30
UL Temperature	80°C
Stationary Min.	1.7 in (43 mm)
Installation Min.	1.7 in (43 mm)
Max. Pull Tension	27 lbs (12 kg)
Bulk Cable Weight	90 lbs/1000ft
Environmental Suitability	Indoor
Flammability / Reaction to Fire	UL 1685 FT4 Loading, FT4, IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca; CPR UKCA Class: Eca
NEC / UL Compliance	Article 800, CMG
AWM Compliance	AWM 2576
CEC / C(UL) Compliance	CMG
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Conductor Count	3 Conductors
Conductor Material	Tinned Copper
Conductor Size	22 Awg (American Wire Gauge)
Conductor Type	Stranded Conductor
Fire Rating	General Purpose
Insulation Material	PVC-Polyvinyl Chloride
Jacket Material	PVC-Polyvinyl Chloride
Nec Rating	Nec Cmg
Screen/Shield	No
UNSPC Code	26121613

Documents and Downloads

Belden 8443 0605000 Data Sheet
