Brand: Belden
|
SKU:
B8457-DY0

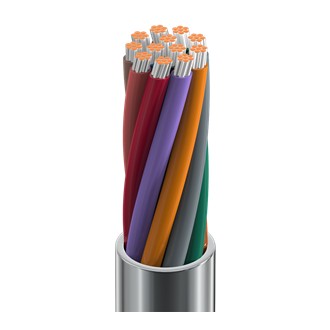

Belden 8457 0601000 | Electronic Cable, 12 Conductor #22 Stranded TC, PVC Insulation, PVC Jacket, CMG
Regular price
$7.08
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8457 0601000 | Electronic Cable, 12 Conductor #22 Stranded T...
Regular price
$7.08
Unit price
Brand: Belden
|
SKU:
B8457-DY0
Regular price
$7.08
Unit price
Description
Description
Belden 8457 0601000 | Electronic Cable, 12 Conductor #22 Stranded TC, PVC Insulation, PVC Jacket, CMG
Electronic, 12 Conductor 22AWG (7x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG.
Specifications
Specifications
Belden - 8457 0601000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 12 |
| Stranding | 7x30 |
| UL Temperature | 80°C |
| Stationary Min. | 2.7 in (69 mm) |
| Installation Min. | 2.7 in (69 mm) |
| Max. Pull Tension | 109 lbs (49.4 kg) |
| Bulk Cable Weight | 47 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 2576 |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Conductor Count | 12 Conductors |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | PVC-Polyvinyl Chloride |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Nec Cmg |
| Screen/Shield | No |
| UNSPC Code | 26121613 |
