Brand: Belden | SKU: B8471-PR

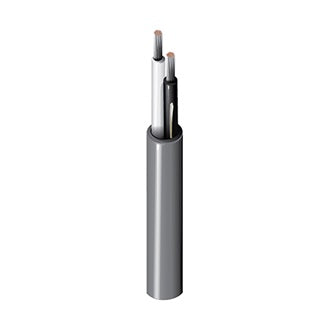

Belden 8471 0605000 | Electronic Cable, 2 Conductor #16 Stranded TC, PVC Insulation, PVC Jacket, CMG

$4.48

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Belden 8471 0605000 | Electronic Cable, 2 Conductor #16 Stranded TC, PVC Insulation, PVC Jacket, CMG

Electronic, 2 Conductor 16AWG (19x29) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG.

Specifications

Belden - 8471 0605000 - Specifications

Element	Pair(s)
No. of Elements	1
Stranding	19x29
UL Temperature	60°C
Stationary Min.	2.7 in (69 mm)
Installation Min.	2.7 in (69 mm)
Max. Pull Tension	94 lbs (43 kg)
Bulk Cable Weight	38 lbs/1000ft
Environmental Suitability	Indoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL 1685 UL loading , FT4, IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca; CPR UKCA Class: Eca
NEC / UL Compliance	Article 725, Article 800, CMG, CL3
AWM Compliance	AWM 2598
CEC / C(UL) Compliance	CMG
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
Conductor Count	1 Pair
Conductor Material	Tinned High-Conductivity Copper Conductors
Conductor Size	16 Awg (American Wire Gauge)
Conductor Type	Stranded Conductor
Fire Rating	General Purpose
Insulation Material	PVC-Polyvinyl Chloride
Jacket Material	PVC-Polyvinyl Chloride
Nec Rating	Nec Cmg
Screen/Shield	No
UNSPC Code	26121613

Documents and Downloads

Belden 8471 0605000 Data Sheet
