Brand: Belden
|
SKU:
B8503-9-DY5

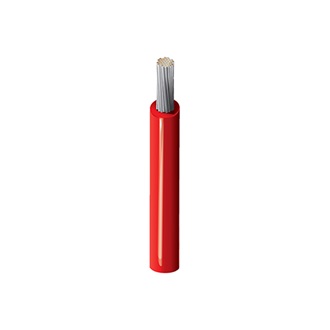

Belden 8503 0091000 | Lead Wire, #22 Stranded TC, PVC Insulation, TYPE B MIL-W-16878/1
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8503 0091000 | Lead Wire, #22 Stranded TC, PVC Insulation, T...
Regular price
$1.46
Unit price
Description
Description
Belden 8503 0091000 | Lead Wire, #22 Stranded TC, PVC Insulation, TYPE B MIL-W-16878/1
Low Temp Plastic Lead Wire, 22AWG (7x30) Tinned Copper, PVC Insulation, TYPE B MIL-W-16878/1 600V 105C.
Specifications
Specifications
Belden - 8503 0091000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 22 AWG |
| Stranding | 7x30 |
| UL Temperature | 105°C |
| Environmental Suitability | Outdoor |
| Sustainability | CA Prop 65 |
| Military Compliance | MIL-W-16878/1 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Stranding | 7 Strands In Each Conductor |
| Insulation Color | White |
| Insulation Material | PVC-Polyvinyl Chloride |
| Mil Spec | Mil-W-16878/1 (Type B) |
| Product Type | M16878 |
| Rohs Compliant | Yes |
| Shielded | Not Shielded |
| Temperature Rating | 105 Degrees Centigrade (221 F) |
| UNSPC Code | 26121539 |
