Brand: Belden
|
SKU:
B8522-13

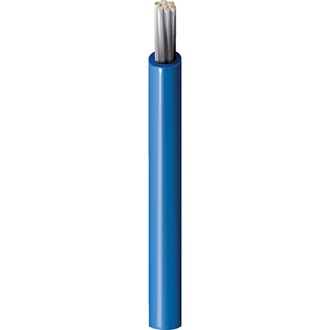

Belden 8522 0011000 | Lead Wire, #18 Stranded TC, PVC Insulation, TYPE MW MIL-W-76C-PVC
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8522 0011000 | Lead Wire, #18 Stranded TC, PVC Insulation, T...
Regular price
$1.46
Unit price
Description
Description
Belden 8522 0011000 | Lead Wire, #18 Stranded TC, PVC Insulation, TYPE MW MIL-W-76C-PVC
Low Temp Plastic Lead Wire, 18AWG (16x30) Tinned Copper, PVC Insulation, TYPE MW MIL-W-76C-PVC 1000V 80C.
Specifications
Specifications
Belden - 8522 0011000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 18 AWG |
| Stranding | 16x30 |
| UL Temperature | 80°C |
| Environmental Suitability | Outdoor |
| Sustainability | CA Prop 65 |
| Military Compliance | MIL-W-76C Type MWP |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Conductor Material | Tinned Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Stranding | 16 Strands In Each Conductor |
| Insulation Color | Brown |
| Insulation Material | PVC-Polyvinyl Chloride |
| Mil Spec | Mil-W-76 |
| Product Type | Mw-76 |
| Rohs Compliant | Yes |
| Shielded | Not Shielded |
| Temperature Rating | 80 Degrees Centigrade (176 F) |
| UNSPC Code | 26121539 |
