Brand: Belden
|
SKU:
B8530-9-DY6
Belden 8530 0091000 | Lead Wire, #22 Solid TC, PVC Insulation, TYPE MW MIL-W-76C-PVC
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8530 0091000 | Lead Wire, #22 Solid TC, PVC Insulation, TYPE...
Regular price
$1.46
Unit price
Description
Description

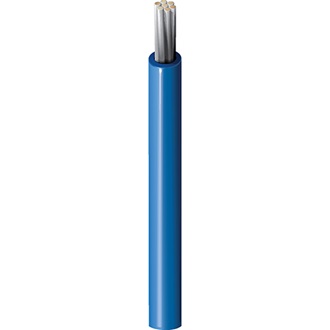

Belden 8530 0091000 | Lead Wire, #22 Solid TC, PVC Insulation, TYPE MW MIL-W-76C-PVC
Tinned copper, PVC insulation, medium wall. The extruded PVC insulation is flame and ozone resistant. Inert to most chemicals, oils, and solvents. Covers single cond., PVC insulated hook-up wire for internal wiring of electrical and electronic equipment.
Specifications
Specifications
Belden - 8530 0091000 - Specifications
| Stranding | Solid |
|---|---|
| Material | TC - Tinned Copper |
| No. of Conductors | 1 |
| Bulk Cable Weight | 3 lbs/1000ft |
| Min. Bend Radius/Minor Axis | 0.24 in |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Stranding | 1 Strand In Each Conductor (Solid) |
| Insulation Color | White |
| Insulation Material | PVC-Polyvinyl Chloride |
| Mil Spec | Mil-W-76 |
| Product Type | Mw-76 |
| Rohs Compliant | Yes |
| Shielded | Not Shielded |
| Temperature Rating | 80 Degrees Centigrade (176 F) |
| UNSPC Code | 26121539 |
