Brand: Belden
|
SKU:
B8643-DY0

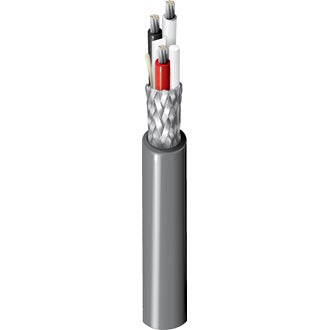

Belden 8643 060250 | Electronic Cable, 3 Conductor #30 Stranded TC, PP Insulation, OA TC Braid, PVC Jacket
Regular price
$8.66
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8643 060250 | Electronic Cable, 3 Conductor #30 Stranded TC,...
Regular price
$8.66
Unit price
Brand: Belden
|
SKU:
B8643-DY0
Regular price
$8.66
Unit price
Description
Description
Belden 8643 060250 | Electronic Cable, 3 Conductor #30 Stranded TC, PP Insulation, OA TC Braid, PVC Jacket
30 AWG stranded (7x38) tinned copper conductors, conductors cabled around textile strength member, polpyropylene insulation, paper separator, tinned copper braid shield (95% shield coverage), PVC jacket.
Specifications
Specifications
Belden - 8643 060250 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 3 |
| Stranding | 7x38 |
| Operating | -20°C to +105°C |
| Stationary Min. | 1.0 in (25 mm) |
| Installation Min. | 1.0 in (25 mm) |
| Max. Pull Tension | 22.5 lbs (10.2 kg) |
| Bulk Cable Weight | 8 lbs/1000ft (12 kg/km) |
| Environmental Suitability | Indoor |
| Sustainability | CA Prop 65 |
| CPR Compliance | CPR Euroclass: Eca |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Conductor Count | 3 Conductors |
| Conductor Material | Tinned Copper |
| Conductor Size | 30 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | Pp-Polypropylene |
| Jacket Material | PVC-Polyvinyl Chloride |
| Screen/Shield Type | Braid Shielded |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121613 |
