Brand: Belden
|
SKU:
B8720-2-PR

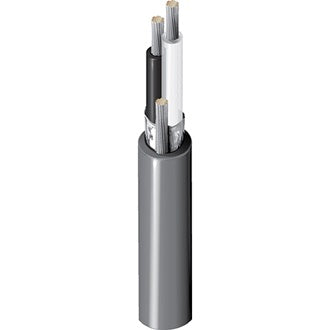

Belden 8720 0602000 | Electronic Cable, 2 Conductor #14 Stranded TC, PE Insulation, OS, PVC Jacket, CM
Regular price
$7.08
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8720 0602000 | Electronic Cable, 2 Conductor #14 Stranded TC...
Regular price
$7.08
Unit price
Brand: Belden
|
SKU:
B8720-2-PR
Regular price
$7.08
Unit price
Description
Description
Belden 8720 0602000 | Electronic Cable, 2 Conductor #14 Stranded TC, PE Insulation, OS, PVC Jacket, CM
Electronic, 2 Conductor 14AWG (19x27) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM.
Specifications
Specifications
Belden - 8720 0602000 - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Stranding | 19x27 |
| UL Temperature | 80°C |
| Stationary Min. | 3.6 in (91 mm) |
| Installation Min. | 3.6 in (91 mm) |
| Max. Pull Tension | 135 lbs (61.2 kg) |
| Bulk Cable Weight | 64 lbs/1000ft |
| Environmental Suitability | Indoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1685 UL loading , IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 725, CL2 |
| AWM Compliance | AWM 20253 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Conductor Count | 1 Pair |
| Conductor Material | Tinned Copper |
| Conductor Size | 14 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | PE-Polyethylene |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 725 Class 2 |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121613 |
