Brand: Belden
|
SKU:
B8723-DY6
Belden 8723 06010000 | Audio, Control & Instrument Cable, #22-2 Pair, PO, Indiv. Foil, PVC Jacket, CM
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8723 06010000 | Audio, Control & Instrument Cable, #22-2...
Regular price
$3.00
Unit price
Description
Description

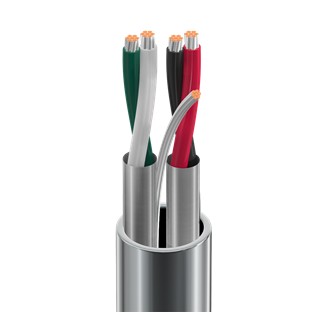

Belden 8723 06010000 | Audio, Control & Instrument Cable, #22-2 Pair, PO, Indiv. Foil, PVC Jacket, CM
Audio, Control & Instrument Cable, 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, twisted pairs, individually Beldfoil® shielded (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
Specifications
Specifications
Belden - 8723 06010000 - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 2 |
| Size | 22 AWG |
| Stranding | 7x30 |
| UL Temperature | 60°C |
| Stationary Min. | 1.6 in (41 mm) |
| Installation Min. | 1.6 in (41 mm) |
| Max. Pull Tension | 42 lbs (19 kg) |
| Bulk Cable Weight | 17 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance | Article 800, CM |
| CEC / C(UL) Compliance | CM |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 82723, 87723, 88723 |
| UNSPC Code | 26121613 |
