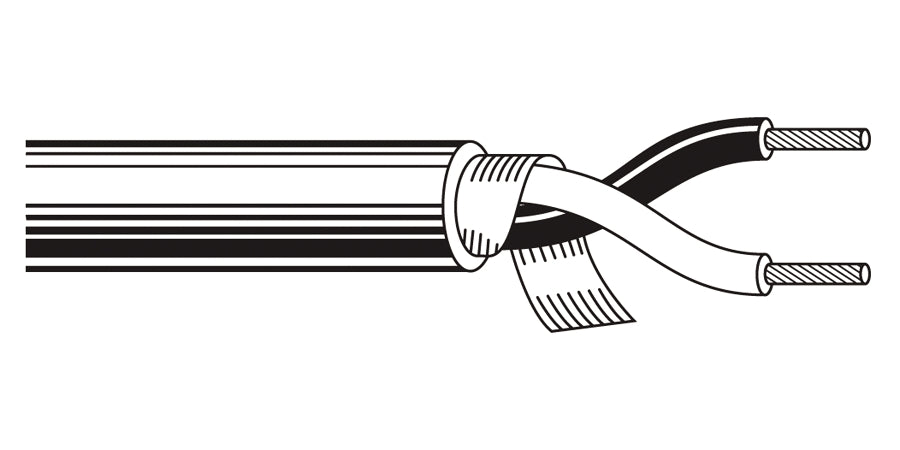

Belden 8737 0601000 | Audio Cable, 22 AWG, Stranded, 1 Pair, Tinned...
Regular price
$1,604.40
Unit price
Brand: Belden
|
SKU:
B8737
Regular price
$1,604.40
Unit price
Description
Description
Belden 8737 0601000 | Audio Cable, 22 AWG, Stranded, 1 Pair, Tinned Copper, CM
Audio Cable; 22 AWG; Stranded; 1 Pair Conductor; Tinned Copper; 1000 ft. Length; 7x30 Str; Chrome PVC Jacket; PVC Insulation; CM; 300 V; Black and Red; Spiral Serve/Screen; Tinned Copper Shield; -20 to +80 C; 20 lb.; 49 Ohm
Specifications
Specifications
Belden - 8737 0601000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 8737 0601000 - Applications
- Low voltage analog signals (4-20ma, 0-10v, ...); Low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Belden - 8737 0601000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 8737 0601000 |
| Item Description | Audio Cable, 22 AWG, Stranded, 1 Pair, Tinned Copper, CM |
| Amperage | 3 A |
| Approval Listings | Ul-2095, Ce-Marked |
| Bend Radius | 1-3/4 In. |
| Csa | Ft-4 Vertical Flame Test - Cables In Cable Trays |
| Capacitance | 40 Pf/Ft. |
| Color Code | Black, Red |
| Conductor Count | 1 Pair |
| Conductor Material | Tinned Or Coated Copper |
| Conductor Size | 22 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Construction | Overall Shield &Amp Drain |
| Impedance | 49 Ohm |
| Inductance | 0.17 ?h/Ft. |
| Insulation Color | Black; Red |
| Insulation Material | Pvc-Polyvinyl Chloride |
| Insulation Thickness | 0.06 In. |
| Jacket Color | Chrome |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Non-Riser/Plenum, Cmg, Ft4 |
| Length | 1000 Ft. |
| Material | Tinned Or Coated Copper |
| Nec Rating | Nec Cmg |
| Nom. O.D. (In.) | 0.18 |
| Nominal O.D. | 0.18 In. |
| Number Of Pairs | 1 |
| Package Type | Reel |
| Plenum | General Purpose (Cm, Cmg, Cmx) |
| Product Type | Audio Cable |
| Pulling Force | 20 Lbs. |
| Resistance | 16 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | Yes |
| Shield Material | 85% Tinned Copper |
| Shield Type | Spiral Shield |
| Shielded | Stp-Shielded Twisted Pair |
| Stranding | 7X30 |
| Temperature Rating | -20 To +80 C |
| Thickness | 0.025 In. |
| Voltage | 300 V |
| Weight Lbs./1,000 Ft. | 20 |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
