Brand: Belden
|
SKU:
B8760-500-MT

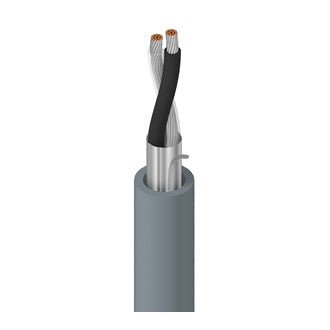

Belden 8760 060500 | Electronic, 2 C #18 Stranded TC, PE Insulated, OS, PVC Jacket, CM
Regular price
$2.52
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8760 060500 | Electronic, 2 C #18 Stranded TC, PE Insulated,...
Regular price
$2.52
Unit price
Description
Description
Belden 8760 060500 | Electronic, 2 C #18 Stranded TC, PE Insulated, OS, PVC Jacket, CM
Specifications
Specifications
Belden - 8760 060500 - Specifications
| Suitable Applications | low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring |
|---|---|
| Max. Pull Tension | 54.2 lbs (24.6 kg) |
| Bulk Cable Weight | 25 lbs/1000ft |
| Update and Revision,Footnote | Revision Number: 0.665 Revision Date: 09-07-2025,C - CRATE REEL PUT-UP., Y - FINAL PUT-UP LENGTH MAY VAR -10% TO +20% FROM LENGTH SHOWN. MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500'. |
| Conductor Count | 1 PAIR |
| Conductor Material | TINNED COPPER |
| Conductor Size | 18 AWG |
| Screen/Shield | YES |
| UNSPSC Code | 26121613 |
