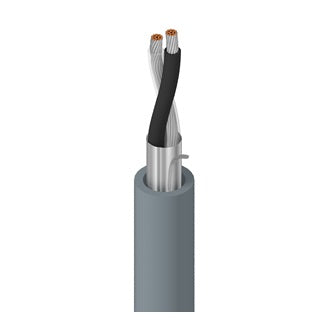

Belden 8760 | Electronic, 2 C #18 Stranded TC, Pe Insulation Os, PV...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B8760+
Regular price
$1.46
Unit price
Description
Description
Belden 8760 | Electronic, 2 C #18 Stranded TC, Pe Insulation Os, PVC Jacket , Cm
Electronic, 2 Conductor 18AWG (16x30) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM
Belden - 8760 - Features
- Aluminum Foil-Polyester Tape w/ Shorting Fold
- Drain wire is on the outside of the foil shield
Specifications
Specifications
Belden - 8760 - Specifications
| Stranding | 16x30 |
|---|---|
| Material | TC - Tinned Copper |
| Conductor Count | 1 Pair |
| Conductor Material | Tinned Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Fire Rating | General Purpose |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Insulation Material | Pe-Polyethylene |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| Nec Rating | Ul Listed Art 800 |
| UNSPSC Code | 26121613 |
