Brand: Belden
|
SKU:
B8760-1000-DY6

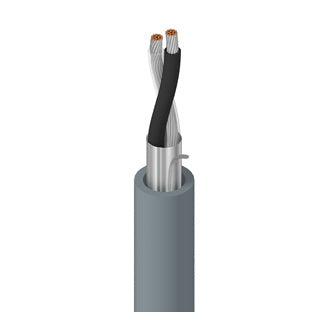

Belden 8760 | Electronic Cable, 2 Conductor #18 Stranded TC, PE Insulation, OS, PVC Jacket, CM
Regular price
$3.00
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8760 | Electronic Cable, 2 Conductor #18 Stranded TC, PE Ins...
Regular price
$3.00
Unit price
Brand: Belden
|
SKU:
B8760-1000-DY6
Regular price
$3.00
Unit price
Description
Description
Belden 8760 | Electronic Cable, 2 Conductor #18 Stranded TC, PE Insulation, OS, PVC Jacket, CM
Electronic, 2 Conductor 18AWG (16x30) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM.
Specifications
Specifications
Belden - 8760 - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 18 AWG |
| Stranding | 16x30 |
| UL Temperature | 60°C |
| Stationary Min. | 2.2 in (56 mm) |
| Installation Min. | 2.2 in (56 mm) |
| Max. Pull Tension | 54.2 lbs (24.6 kg) |
| Bulk Cable Weight | 25 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | UL 1685 UL loading , IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance | Article 800, CM |
| AWM Compliance | AWM 2092 |
| CEC / C(UL) Compliance | CM |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| Plenum Number | 88760, 87760 or 82760 |
