Brand: Belden
|
SKU:
B8761-1000-DY3

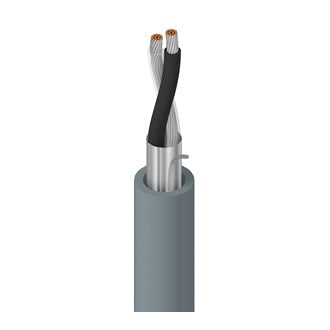

Belden 8761 | Electronic Cable, 2 Conductor #22 Stranded TC, PE Insulation, OS, PVC Jacket, CM
Regular price
$1.46
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8761 | Electronic Cable, 2 Conductor #22 Stranded TC, PE Ins...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B8761-1000-DY3
Regular price
$1.46
Unit price
Description
Description
Belden 8761 | Electronic Cable, 2 Conductor #22 Stranded TC, PE Insulation, OS, PVC Jacket, CM
Electronic, 2 Conductor 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM.
Specifications
Specifications
Belden - 8761 - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 22 AWG |
| Stranding | 7x30 |
| UL Temperature | 60°C |
| Stationary Min. | 1.8 in (46 mm) |
| Installation Min. | 1.8 in (46 mm) |
| Max. Pull Tension | 27.3 lbs (12.4 kg) |
| Bulk Cable Weight | 16 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | UL 1685 UL loading , IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance | Article 800, CM |
| AWM Compliance | AWM 2092 |
| CEC / C(UL) Compliance | CM |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| Plenum Number | 88761, 87761, 82761 |
