Brand: Belden
|
SKU:
B8770-6

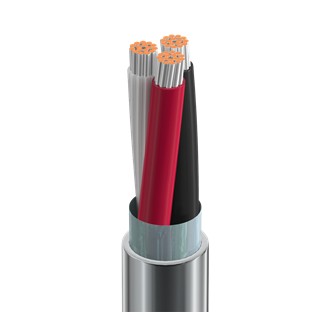

Belden 8770 06010000 | Electronic Cable, 3 Conductor #18 Stranded TC, PE Insulation, OS, PVC Jacket, CM
Regular price
$4.06
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8770 06010000 | Electronic Cable, 3 Conductor #18 Stranded T...
Regular price
$4.06
Unit price
Brand: Belden
|
SKU:
B8770-6
Regular price
$4.06
Unit price
Description
Description
Belden 8770 06010000 | Electronic Cable, 3 Conductor #18 Stranded TC, PE Insulation, OS, PVC Jacket, CM
Electronic, 3 Conductor 18AWG (16x30) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM.
Specifications
Specifications
Belden - 8770 06010000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 3 |
| Stranding | 16x30 |
| UL Temperature | 60°C |
| Stationary Min. | 0.16 in (4.1 mm) |
| Installation Min. | 2.5 in (64 mm) |
| Max. Pull Tension | 75 lbs (34 kg) |
| Bulk Cable Weight | 36 lbs/1000ft |
| Environmental Suitability | Indoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1685 UL loading , IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance | Article 800, CM |
| AWM Compliance | AWM 2093 |
| CEC / C(UL) Compliance | CM |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| Plenum Number | 88770 |
| Conductor Count | 3 Conductors |
| Conductor Material | Tinned Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | PE-Polyethylene |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Nec Cmg |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121613 |
