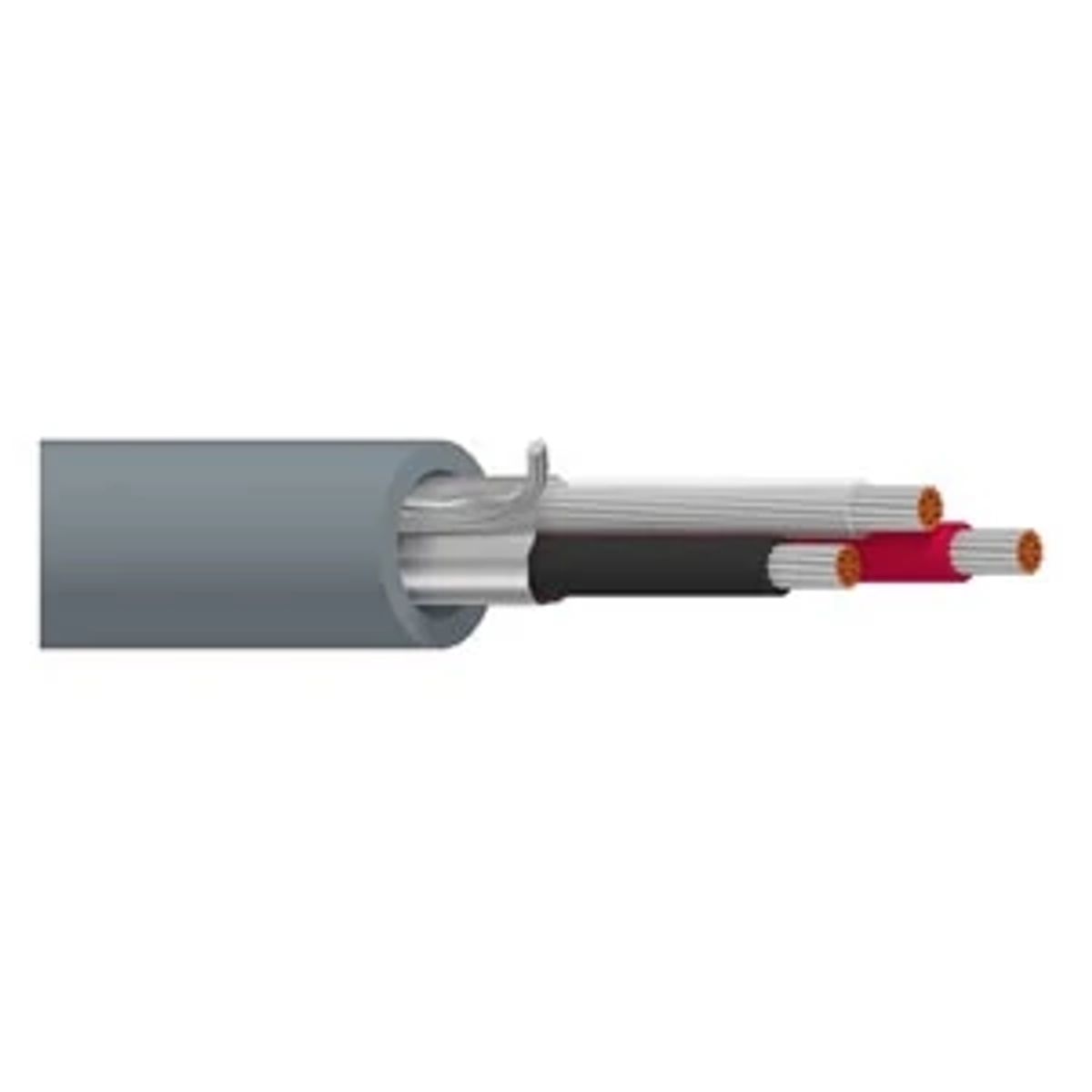

Belden 8771 060U1000 | Multi-Conductor Cable, Polyethylene, 22 AWG, 3-Conductor, 300V, Non-Plenum, Chrome, 1000 ft.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8771 060U1000 | Multi-Conductor Cable, Polyethylene, 22 AWG,...
Description
Description
Standards
NEC Articles: 800
NEC/(UL) Specification: CM
CEC/C(UL) Specification: CM
UL AWM Style: UL Style 2093 (300 V 60°C)
CPR Euroclass: Eca
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
Flammability, LS0H, Toxicity Testing
UL Flammability: UL1685 UL Loading
CSA Flammability: FT1
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS
Specifications
Specifications
Specifications
| ECCN | EAR99 |
|---|---|
| Country of Origin | US - United States |
| UNSPSC | 26121500 |
| Length | 1000 ft. |
| Cable Type | Non-Plenum |
| Conductor Size | 22 AWG |
| Conductor Material | Tinned Copper |
| Jacket Material | Polyvinyl Chloride |
| Insulation Material | Polyethylene |
| No. of Conductors | 3 |
| Shielded | Aluminum/Polyester |
