Brand: Belden
|
SKU:
B8778-100

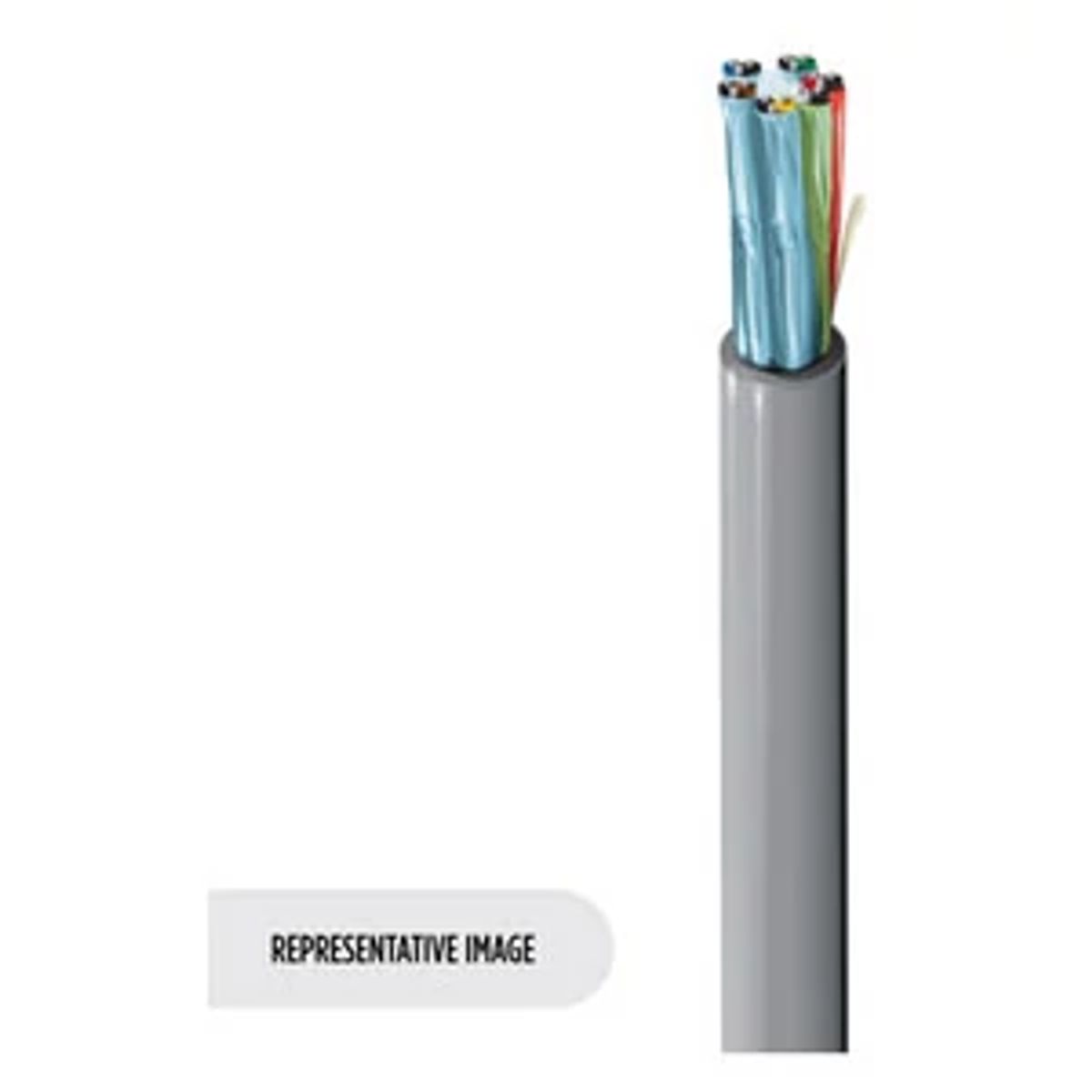

Belden 8778 060100 | Multi-Conductor Cable, Tinned Copper, 22 AWG, Polyvinyl Chloride Jacket, 12-Conductor, Non-Plenum, 100 ft., Chrome
Regular price
$10.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8778 060100 | Multi-Conductor Cable, Tinned Copper, 22 AWG, ...
Regular price
$10.81
Unit price
Description
Description
Belden ENT 8778 060100 | Multi-Conductor Cable, Tinned Copper, 22 AWG, Polyvinyl Chloride Jacket, 12-Conductor, Non-Plenum, 100 ft., Chrome
Specifications
Specifications
Standards
- NEC Articles: 800
- NEC/(UL) Specification: CM
- CEC/C(UL) Specification: CM
- UL AWM Style: 2919 (30 V 80°C)
- CPR Euroclass: Eca
Environmental Programs
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2003/96/EC (BFR): Yes
- EU Directive 2011/65/EU (ROHS II): Yes
- EU Directive 2012/19/EU (WEEE): Yes
- EU Directive Compliance: EU Directive 2003/11/EC (BFR)
- EU CE Mark: Yes
Suitability
- Suitability - Indoor: Yes
Flammability
- UL Flammability: UL1685 UL Loading
- CSA Flammability: FT1
- ISO/IEC Flammability: IEC 60332-1-2
- UL voltage rating: 300 V RMS (CM)
Additional Specifications
| ECCN | EAR99 |
|---|---|
| Country of Origin | MX - Mexico |
| UNSPSC | 26121600 |
| Length | 100 ft. |
| Cable Type | Non-Plenum |
| Conductor Size | 22 AWG |
| Conductor Material | Tinned Copper |
| Jacket Material | Polyvinyl Chloride |
| Insulation Material | Polypropylene |
| No. of Conductors | 12 |
| Shielded | Aluminum, Polyester |
