Brand: Belden
|
SKU:
B8869-2

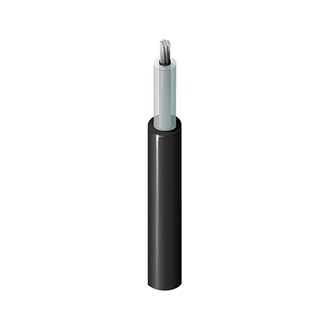

Belden 8869 010500 | Lead Wire, #22 Stranded TC, Conductive PO/PO Insulation, PVC Jacket, 17kV
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8869 010500 | Lead Wire, #22 Stranded TC, Conductive PO/PO I...
Regular price
$3.00
Unit price
Description
Description
Belden 8869 010500 | Lead Wire, #22 Stranded TC, Conductive PO/PO Insulation, PVC Jacket, 17kV
Low Temp Plastic Lead Wire, 22AWG (7x30) Tinned Copper, Conductive PO/PO Insulation, PVC Outer Jacket, 17kV.
Specifications
Specifications
Belden - 8869 010500 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 22 |
| Stranding | 7x30 |
| Sustainability | CA Prop 65 |
| European Directive Compliance | EU Directive 2012/19/EU (WEEE) |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Stranding | 7 Strands In Each Conductor |
| Insulation Color | Black |
| Insulation Material | PE-Polyethylene |
| Product Type | Leadwire |
| Rohs Compliant | Yes |
| Shielded | Not Shielded |
| Temperature Rating | 80 Degrees Centigrade (176 F) |
| UNSPC Code | 26121524 |
