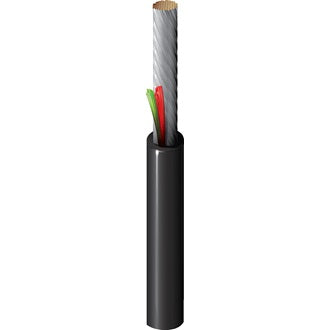

Belden 8899 0021000 | Lead Wire, #18 Stranded TC, EPDM Insulation
Regular price
$5.09
Unit price
Brand: Belden
|
SKU:
B8899-2/6
Regular price
$5.09
Unit price
Description
Description
Belden 8899 0021000 | Lead Wire, #18 Stranded TC, EPDM Insulation
Low Temp Rubber Lead Wire, 18AWG (65x36) Tinned Copper, EPDM Insulation, 5000V 90C.
Specifications
Specifications
Belden - 8899 0021000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 18 AWG |
| Stranding | 65x36 |
| UL Temperature | 80°C |
| Environmental Suitability | Outdoor |
| Sustainability | CA Prop 65 |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Conductor Material | Tinned Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Stranding | 65 Strands In Each Conductor |
| Insulation Color | Red |
| Insulation Material | Rub-Rubber |
| Product Type | Leadwire |
| Rohs Compliant | Yes |
| Shielded | Not Shielded |
| Temperature Rating | 90 Degrees Centigrade (194 F) |
| UNSPC Code | 26121524 |
