Belden 8918 | Lead Wire, #18 Stranded TC, PVC Insulation, AWM 1015 ...
Regular price
$3.00
Unit price
Brand: Belden
|
SKU:
B8918-0/D6
Regular price
$3.00
Unit price
Description
Description

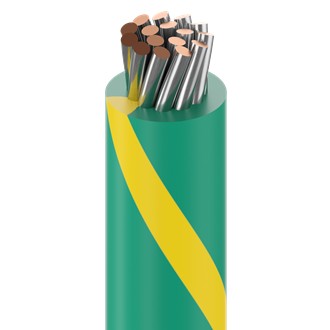

Belden 8918 | Lead Wire, #18 Stranded TC, PVC Insulation, AWM 1015 AWM 1230
Low Temp Plastic Lead Wire, 18AWG (16x30) Tinned Copper, PVC Insulation, AWM 1015 AWM 1230 CSA TYPE TEW JQA-F 600V 105C.
Specifications
Specifications
Belden - 8918 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 18 AWG |
| Stranding | 16x30 |
| UL Temperature | 105°C |
| Environmental Suitability | Indoor, Outdoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | VW-1 |
| NEC / UL Compliance | Article 310, MTW |
| AWM Compliance | AWM 1015, AWM 1230, CSA AWM I A/B |
| CEC / C(UL) Compliance | TEW |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
