Brand: Belden
|
SKU:
B89504-D

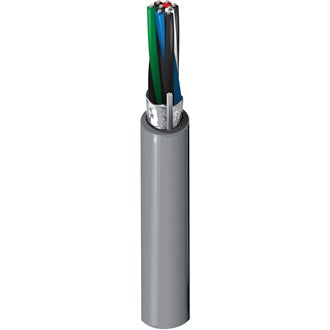

Belden 89504 0021000 | RS232, #24-4 Pair, FEP, O/A Foil, FEP Jacket, CMP
Regular price
$128,810.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 89504 0021000 | RS232, #24-4 Pair, FEP, O/A Foil, FEP Jacket...
Regular price
$128,810.75
Unit price
Description
Description
Belden 89504 0021000 | RS232, #24-4pr, FEP, O/A Foil, FEP Jacket, CMP
24 AWG stranded (7x32) tinned copper conductors, plenum, FEP insulation, twisted pair, overall Beldfoil shield (100% coverage), 24 AWG stranded TC drain wire, FEP jacket
Specifications
Specifications
Belden - 89504 0021000 - Specifications
| Suitable Applications | extreme high/low temperature environments; rs-232 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring |
|---|---|
| Max. Pull Tension | 50 lbs (23 kg) |
| Bulk Cable Weight | 26 lbs/1000ft |
| Update and Revision,Footnote | Revision Number: 0.436 Revision Date: 09-07-2025,C - CRATE REEL PUT-UP. |
| Conductor Count | 4 PAIRS |
| Conductor Material | TINNED COPPER |
| Conductor Size | 24 AWG |
| Fire Rating | PLENUM |
| UNSPSC Code | 26121613 |
