Brand: Belden
|
SKU:
B89913

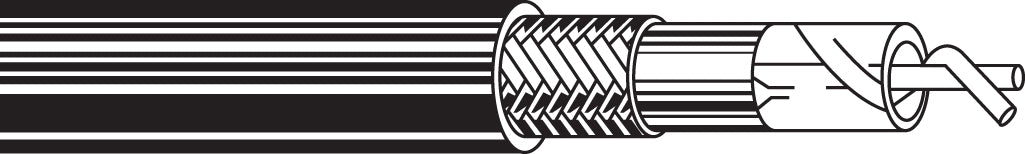

Belden 89913 0101000 | Wireless Transmission Coaxial Cable, RG8 Coax Type, 10 AWG, Solid Conductor, Bare Copper Conductor
Regular price
$18,459.87
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 89913 0101000 | Wireless Transmission Coaxial Cable, RG8 Coa...
Regular price
$18,459.87
Unit price
Description
Description
Belden 89913 0101000 | Wireless Transmission Coaxial Cable, RG8 Coax Type, 10 AWG, Solid Conductor, Bare Copper Conductor
Wireless Transmission Coaxial Cable; RG8 Coax Type; 10 AWG Conductor; Solid Conductor; Bare Copper Conductor; FEP Insulation; Aluminum/Poly/Aluminum Tape, Tinned Copper Braid Shield; 100%, 90% Shield Coverage; PVDF Jacket; Black Jacket
Specifications
Specifications
Belden - 89913 0101000 - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial and DS3 Cable
- Coaxial Cable
Belden - 89913 0101000 - Applications
- Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)
Belden - 89913 0101000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 89913 0101000 |
| Item Description | Wireless Transmission Coaxial Cable, RG8 Coax Type, 10 AWG, Solid Conductor, Bare Copper Conductor |
| Approx. Wt. Lb./1,000 Ft. | 128 |
| Bend Radius | 3.6 In. |
| Braid % | 90% Braid Coverage |
| Braid Matl | Tinned Copper |
| Csa | Ft6 Horizontal Flame &Amp Smoke Test |
| Cable Type | Rg-8 / U Coax Cable |
| Cable/Wire Type | Rg8 |
| Capacitance | 25 Pf/Ft. |
| Coax Construction | Coaxial |
| Coax Type | Rg-8 |
| Conductor Awg | 10 Gauge Awg |
| Conductor Count | 1C |
| Conductor Material | Bare Copper |
| Conductor Size | 10 Awg |
| Conductor Stranding/Dia. Awg &Amp Type | 1/0.108/10/Bc |
| Conductor Type | Solid |
| Dielectric Material | Ssfep-Semi Solid Fep |
| Fire Rating | Plenum |
| Flooded | No Not Flooded Over Braid |
| Imped. Ohms | 50 |
| Impedance | 50 Ohm |
| Indoor Or Outdoor Use | Indoor Or Outdoor |
| Indoor/Outdoor | Indoor |
| Insulation Material (O.D. In.) | Fep/0.295 |
| Insulation Material | Fluorinated Ethylene Propylene |
| Insulation | Fep |
| Jacket Color | Black |
| Jacket Material Color (O.D. In.) | Pvdf/Blk/0.364 |
| Jacket Material | Polyvinylidene Fluoride |
| Jacket Rating Application | Plenum Rated |
| Jacket Rating Code | Cmp Plenum |
| Jacket Rating | Cmp |
| Jacketing Material | Pvdf-Polyvinylidene Fluoride (Kynar) |
| Length | 1000 Ft. |
| Material | Bare Copper |
| Nominal Cable Diameter | 0.36 In. |
| Nominal Impedance | 50 Ohm |
| Nominal Od | 0.360 In (9.14 Mm) |
| Notes/Special Features | Siamese With Control |
| Operating Frequency | 1 To 1000Mhz |
| Outdoor | Yes Is Outdoor Grade Material |
| Package Type | Reel |
| Plenum | Plenum |
| Product Type | Wireless Transmission Coaxial Cable |
| Pulling Tension | 174 Lb. |
| Rating | Cmp |
| Resistance | 0.9 Ohm./1000 Ft. Dc |
| Rg Type | Rg8 |
| Rohs Compliant | Yes |
| Screen/Shield Type | Both, Braid Over Foil |
| Shield Coverage | 100%;90% |
| Shield Material | 90% Tinned Copper Braid |
| Shield Type | Braid; Tape |
| Shield | Foil + 90% Tc Braid |
| Spec/Stnd Nec | Ul Listed Art 800 Plenum |
| Temperature Rating - Max | 150 Deg C |
| Temperature Rating | -20 To +150 C |
| Tensile Strength | 202 Lb. |
| Voltage Rating | 300 V |
| Voltage | 300 V |
| Environmental Suitability | Indoor - Plenum, Indoor, Outdoor, UV Resistance, Aerial - When supported by messenger wire |
