Belden 9228 0101000 | Coax - 93 Ohm Rg-62A/U Type Coax Black
Regular price
$4.06
Unit price
Brand: Belden
|
SKU:
B9228
Regular price
$4.06
Unit price
Description
Description

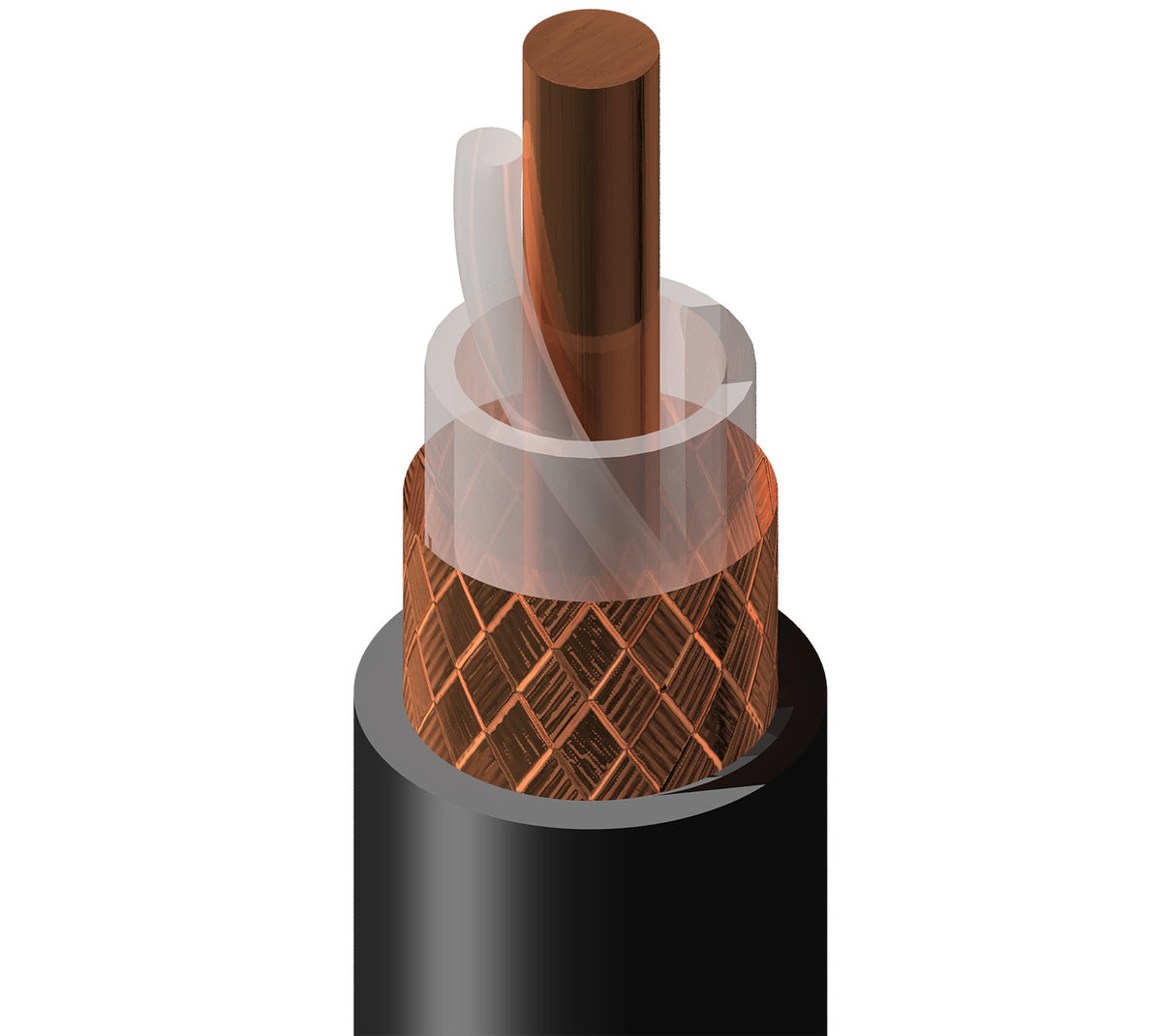

Belden 9228 0101000 | Coax - 93 Ohm Rg-62A/U Type Coax Black
93 ohm, RG-62A/U type, 22 AWG solid .025" bare copper-covered steel conductor, semi-solid polyethylene insulation, bare copper braid shield (95% coverage), high-density polyethylene jacket.
Specifications
Specifications
Belden - 9228 0101000 - Specifications
| Coax Construction | Coaxial |
|---|---|
| Coax Type | Rg 62 |
| Conductor Material | Copper Clad Steel |
| Screen/Shield Type | Braid Only |
| Conductor Type | Solid Conductor |
| Dielectric Material | Sspe-Semi Solid Polyethylene |
| Fire Rating | General Purpose (Cm, Cmg, Cmx) |
| Flooded | No Not Flooded Over Braid |
| Impedance | 93 Ohm Nominal Impedance |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Outdoor | No Not Outdoor Grade Material |
| UNSPSC Code | 26121606 |
| Operating Temperature | -55°C to +80°C |
| Color | Black |
