Brand: Belden
|
SKU:
B9239

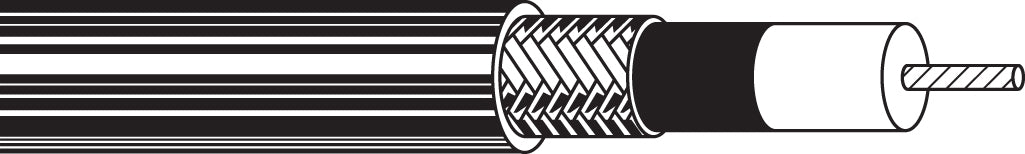

Belden 9239 0101000 | Audio Cable, RG174, 26 AWG, Stranded, 1, 1000 ft. L, Black
Regular price
$1,399.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9239 0101000 | Audio Cable, RG174, 26 AWG, Stranded, 1, 1000...
Regular price
$1,399.81
Unit price
Description
Description
Belden 9239 0101000 | Audio Cable, RG174, 26 AWG, Stranded, 1, 1000 ft. L, Black
Audio Cable; RG174; 26 AWG; Stranded; 1 Conductor; Bare Copper Covered Steel; 1000 ft. Length; 7x34 Str; Black PVC Jacket; PE (Conductive) Insulation; 300 V; Braid; Tinned Copper Shield; -40 to +60 C; 43 lb.; 44 pF/ft.
Specifications
Specifications
Belden - 9239 0101000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 9239 0101000 - Applications
- Low noise microphone, Analog audio, Instrumentation
Belden - 9239 0101000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 9239 0101000 |
| Item Description | Audio Cable, RG174, 26 AWG, Stranded, 1, 1000 ft. L, Black |
| Bend Radius | 1 In. |
| Braid % | 90% Braid Coverage |
| Braid Material | Bare Copper |
| Cable Jacket O.D. | 0.101 |
| Cable/Wire Type | Rg174 |
| Capacitance | 44 Pf/Ft. |
| Conductor Count | 1 Conductor |
| Conductor Material | Copper Clad Steel |
| Conductor Size | 26 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Dielectric Material | Pe-Polyethylene (Solid) |
| Enclosure Type | Lanscape (Cch/Wch) |
| Flooded | No, Not Flooded Over Braid |
| Impedance | 50 Ohm |
| Insulation Diameter | 0.044 (Pe) / 0.056 In. (Pvc) |
| Insulation Material | Pe - Polyethylene |
| Jacket Color | Black |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Cm, Cmg, Cmx |
| Length | 1000 Ft. |
| Manufacturer Listed Application | Low Noise Microphone, Analog Audio, Instrumentation |
| Nominal O.D. | 2.57 Mm |
| Notes/Special Features | Low Triboelectric Noise |
| Outdoor | Yes Is Outdoor Grade Material |
| Plenum | General Purpose (Cm, Cmg, Cmx) |
| Product Type | Low Noise Coaxial Audio Cable |
| Pulling Force | 43 Lbs. |
| Rg Type | Rg-174 |
| Resistance | 89.6 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield Type | Braid Only |
| Shield Material | 90% Bare Tinned Copper Braid |
| Shield Type | Braid |
| Shield | 90% Tc Braid |
| Spec/Stnd Nec | Not Listed By Ul Under Nec |
| Temperature Rating - Max | 60 Deg C |
| Temperature Rating | -40 To 60 Deg C |
| Voltage | 300 V |
| Weight Lbs./1,000 Ft. | 8 |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
