Belden 9251 0101000 | Coaxial Cable, RG8/U, 1000 ft. L, Braid, Blac...
Regular price
$4,778.40
Unit price
Brand: Belden
|
SKU:
B9251
Regular price
$4,778.40
Unit price
Description
Description

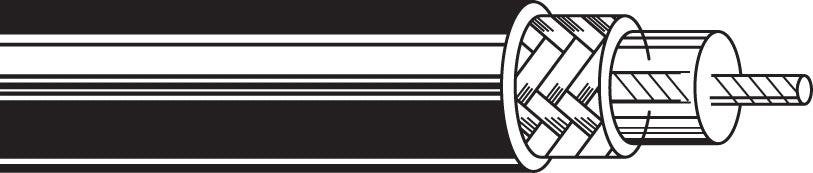

Belden 9251 0101000 | Coaxial Cable, RG8/U, 1000 ft. L, Braid, Black, PVC Jacket
Coaxial Cable; RG8/U; 1000 ft. Length; Braid; Black PVC Jacket; 1 Conductor; Bare Copper; 13 AWG; PE Insulation; Bare Copper Shield; 0.405 in. Nominal Outside Diameter; -40 to +80 C; CMX; 52 Ohm; Indoor/Outdoor; 4 in.
Specifications
Specifications
Belden - 9251 0101000 - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial and DS3 Cable
- Coaxial Cable
Belden - 9251 0101000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 9251 0101000 |
| Item Description | Coaxial Cable, RG8/U, 1000 ft. L, Braid, Black, PVC Jacket |
| Bend Radius | 4 In. |
| Braid % | 97% Braid Coverage |
| Braid Material | Tinned Copper |
| Csa | Ft1 Vertical Flame Test |
| Cable Jacket O.D. | 0.405 |
| Cable/Wire Type | Rg8/U |
| Capacitance | 28.5 Pf/Ft. |
| Coax Type | Rg8/U |
| Conductor Count | 1 |
| Conductor Material | Bare Copper |
| Conductor Size | 13 Awg |
| Conductor Stranding | 7 Strands Per Conductor |
| Conductor Type | Stranded |
| Dielectric Material | Pe-Polyethylene (Solid) |
| Dielectric Type/Jkt. | Pe/Pvc (Non-Contaminating) |
| Door Type | Acrylic Front |
| Fire Rating | General Purpose |
| Flooded | No, Not Flooded Over Braid |
| Frequency | 4000Mhz |
| Impedance | 52 |
| Indoor Or Outdoor Use | Indoor/Outdoor |
| Inductance | 0.079 ?h/Ft. |
| Insulation Diameter | 0.285 In. |
| Insulation Material | Polyethylene |
| Jacket Color | Black |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Cmx |
| Length | 1000 Ft. |
| Manufacturer Listed Application | Transmission |
| Nec Rating | Cmx |
| Nom. O.D. (In.) | 0.405 |
| Nominal Cable Diameter | 0.405 In. |
| Nominal O.D. | 10.29 Mm |
| Operating Frequency | 1 To 4000Mhz |
| Outdoor | No, Not Outdoor Grade Material |
| Package Type | Crate Reel |
| Plenum | General Purpose (Cm, Cmg, Cmx) |
| Product Type | Coaxial Cable |
| Pulling Tension | 190 Lb. |
| Rg Type | Rg-8 |
| Rating | Cmx |
| Resistance | 1.9 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Shield Coverage | 97% Bc Braid |
| Shield Material | 95% Bare Copper Braid |
| Shield Type | Braid |
| Shield | 97% Bc Braid |
| Spec/Stnd Nec | Not Listed By Ul Under Nec |
| Temperature Rating - Max | 80 Deg C |
| Temperature Rating | -40 To 80 Deg C |
| Tensile Strength | 190 Lbs. |
| Voltage Rating | 3700 V |
| Voltage | 30 V, 150 V, 3700 V |
| Weight Lbs./1,000 Ft. | 115 |
| Wire Size | 13 Awg Str (7X21) Bc |
