Brand: Belden
|
SKU:
B9342-PR

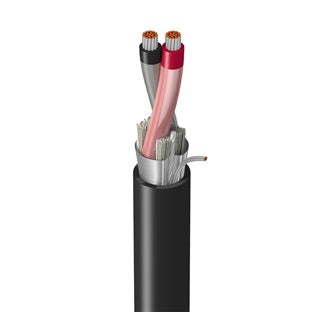

Belden 9342 0105000 | High Performance Instrumentation, 1 Pair #16 Stranded TC, PVC-Nylon Insulation E2, OS, Black PVC Jacket
Regular price
$6.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9342 0105000 | High Performance Instrumentation, 1 Pair #16 ...
Regular price
$6.30
Unit price
Description
Description
Belden 9342 0105000 | High Performance Instrumentation, 1 Pair #16 Stranded TC, PVC-Nylon Insulation E2, OS, Black PVC Jacket
High Performance Instrumentation, 1 Pair 16AWG (19x29) Tinned Copper, PVC-NYL Insulation E2 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC.
Specifications
Specifications
Belden - 9342 0105000 - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Stranding | 19x29 |
| UL Temperature | 90°C Dry, 90°C Wet |
| Stationary Min. | 2.9 in (74 mm) |
| Installation Min. | 2.9 in (74 mm) |
| Max. Pull Tension | 40 lbs (18 kg) |
| Bulk Cable Weight | 52 lbs/1000ft |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| Flammability / Reaction to Fire | UL 1685 UL Loading, IEEE 1202, FT4 |
| NEC / UL Compliance | Article 336, Article 760, NPLF, TC |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Armor | No |
| Conductor Size | 16 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Insulation Material | PVC-Polyvinyl Chloride |
| Jacketing Material | PVC-Polyvinyl Chloride |
| Screen/Shield Type | Overall Aluminum Mylar Foil Shield |
| Screen/Shield | Yes - This Has A Shield |
| Thermocouple | No |
| UNSPC Code | 26121642 |
