Brand: Belden
|
SKU:
323-024-1603-B-MT
Belden 9366 0605000 | Power Limited Tray Cable, 1 Triads, 16 AWG, 19x29 Strands, 300V, Tinned Copper, PVC Insulation
Regular price
$23.26
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9366 0605000 | Power Limited Tray Cable, 1 Triads, 16 AWG, 1...
Regular price
$23.26
Unit price
Brand: Belden
|
SKU:
323-024-1603-B-MT
Regular price
$23.26
Unit price
Shipping calculated at checkout.
Description
Description

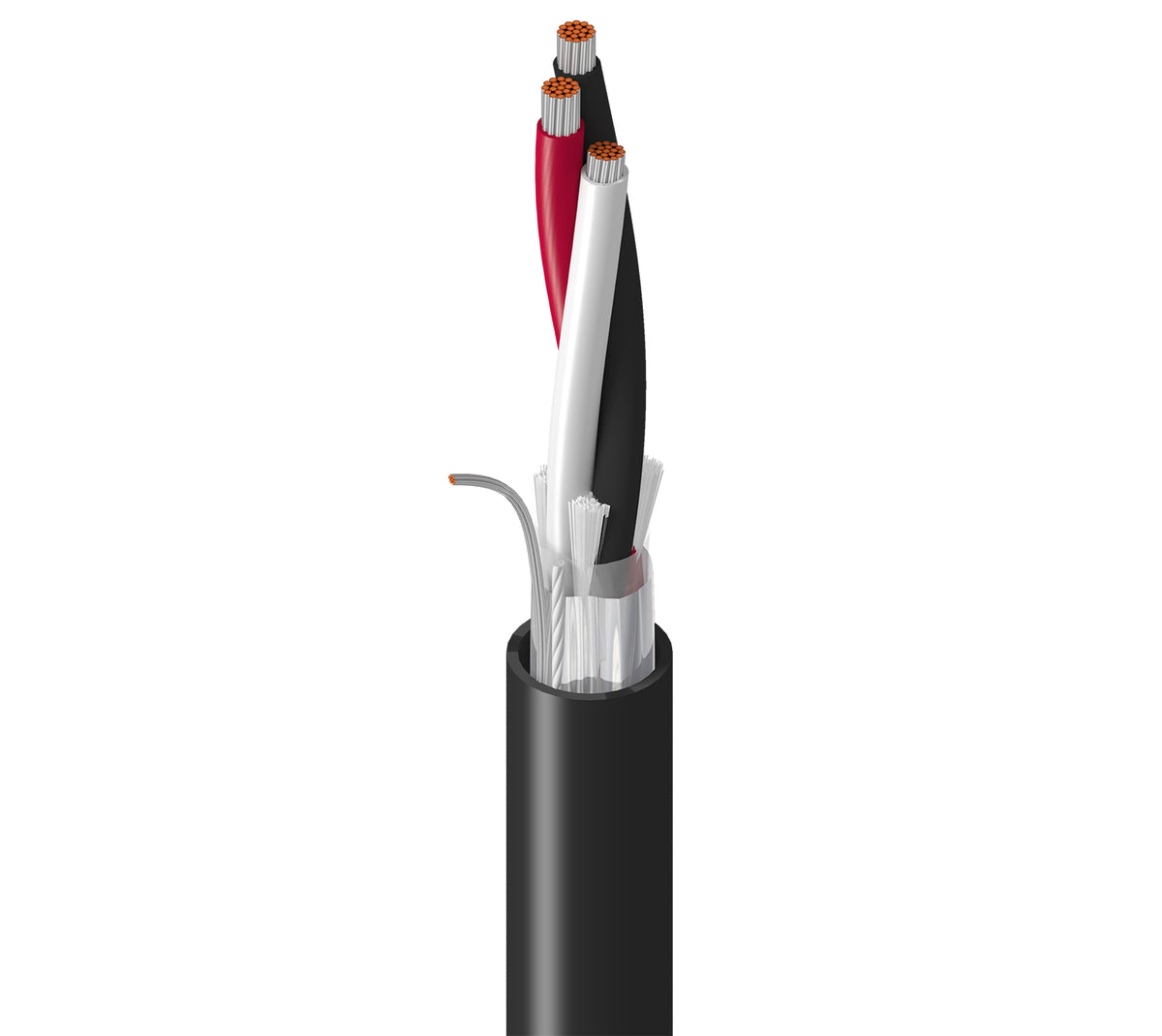

Belden 9366 0605000 | Power Limited Tray Cable, 1 Triads, 16 AWG, 19x29 Strands, 300V, Tinned Copper, PVC Insulation
16 AWG triads stranded (19x29) tinned copper conductors, twisted triads, overall Beldfoil shield (100% coverage), PVC insulation, PVC jacket.
Specifications
Specifications
Belden - 9366 0605000 - Specifications
| Element | Triad(s) |
|---|---|
| No. of Elements | 1 |
| Size | 16 AWG |
| Stranding | 19x29 |
| Material | TC - Tinned Copper |
| Shield Type | Tape |
| Material | Bi-Laminate (Alum+Poly) |
| Coverage | 1 |
| Drainwire Type | 18 AWG (19x30) TC |
| Separator | PP - Polypropylene Tape |
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.042 in (1.1 mm) |
| Nom. Diameter | 0.312 in (7.92 mm) |
| UNSPSC Code | 26121642 |
