Brand: Belden | SKU: B9414-5-VDE

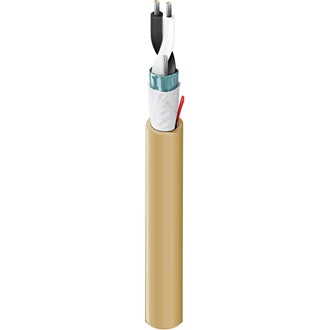

Belden 9414 T351000 | Audio, Control & Instrument Cable, #22-1 Pair, SR-PVC, O/A Foil, PVC Jacket, CMG

$4.10

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Belden 9414 T351000 | Audio, Control & Instrument Cable, #22-1 Pair, SR-PVC, O/A Foil, PVC Jacket, CMG

Audio, Control & Instrument Cable, 22 AWG stranded (7x30) tinned copper conductors, semi-rigid PVC insulation, twisted pair, overall Beldfoil® shield (100% coverage), 22 AWG stranded tinned copper drain wire, jacket-striated PVC.

Specifications

Belden - 9414 T351000 - Specifications

Element	Pair(s)
No. of Elements	1
Stranding	7x30
UL Temperature	80°C
Stationary Min.	1.8 in (46 mm)
Installation Min.	1.8 in
Max. Pull Tension	27 lbs (12 kg)
Bulk Cable Weight	21 lbs/1000ft
Flammability / Reaction to Fire	UL1685 FT4 Loading, FT4
NEC / UL Compliance	Article 800, CMG
AWM Compliance	AWM 2464
CEC / C(UL) Compliance	CMG
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Conductor Count	1 Pair
Conductor Material	Tinned Copper
Conductor Size	22 Awg (American Wire Gauge)
Conductor Type	Stranded Conductor
Fire Rating	General Purpose
Insulation Material	SrPVC-Semi-Rigid Polyvinyl Chloride
Jacket Material	PVC-Polyvinyl Chloride
Nec Rating	Nec Cmg
Screen/Shield Type	Foil Shielded - Alum/Mylar
Screen/Shield	Yes
Shield Construction	Overall Shield &Amp Drain
UNSPC Code	26121613

Documents and Downloads

Belden 9414 T351000 Data Sheet
