Brand: Belden
|
SKU:
B9461-3

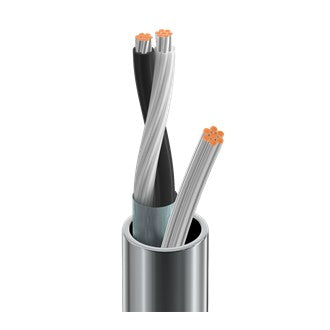

Belden 9461 0605000 | Electronic Cable, 1 Pair #22 Stranded TC, PE Insulation, OS, PVC Jacket, CM
Regular price
$3.00
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9461 0605000 | Electronic Cable, 1 Pair #22 Stranded TC, PE ...
Regular price
$3.00
Unit price
Brand: Belden
|
SKU:
B9461-3
Regular price
$3.00
Unit price
Description
Description
Belden 9461 0605000 | Electronic Cable, 1 Pair #22 Stranded TC, PE Insulation, OS, PVC Jacket, CM
Electronic, 1 Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM.
Specifications
Specifications
Belden - 9461 0605000 - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Stranding | 7x30 |
| UL Temperature | 60°C |
| Stationary Min. | 1.8 in (46 mm) |
| Installation Min. | 1.8 in (46 mm) |
| Max. Pull Tension | 27 lbs (12 kg) |
| Bulk Cable Weight | 20 lbs/1000ft |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1685 UL loading , IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CM |
| AWM Compliance | AWM 2092 |
| CEC / C(UL) Compliance | CM |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Conductor Count | 1 Pair |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | PE-Polyethylene |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121613 |
