Brand: Belden
|
SKU:
B9487-PR

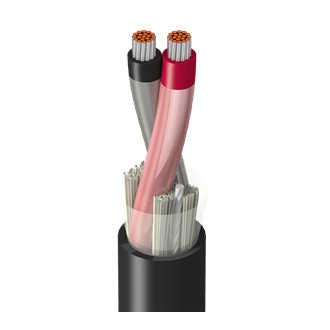

Belden 9487 0101000 | High Performance Instrumentation, 1 Pair #16 Stranded TC, PVC-Nylon Insulation E2, Black PVC Jacket, 600V TC
Regular price
$6.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9487 0101000 | High Performance Instrumentation, 1 Pair #16 ...
Regular price
$6.76
Unit price
Description
Description
Belden 9487 0101000 | High Performance Instrumentation, 1 Pair #16 Stranded TC, PVC-Nylon Insulation E2, Black PVC Jacket, 600V TC
High Performance Instrumentation, 1 Pair 16AWG (19x29) Tinned Copper, PVC-NYL Insulation E2 Color Code, Black PVC Outer Jacket, 600V TC.
Specifications
Specifications
Belden - 9487 0101000 - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 16 AWG |
| Stranding | 19x29 |
| UL Temperature | 90°C Dry, 90°C Wet |
| Stationary Min. | 1.2 in (30 mm) |
| Installation Min. | 1.2 in (30 mm) |
| Max. Pull Tension | 70 lbs (32 kg) |
| Bulk Cable Weight | 51 lbs/1000ft |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance |
| Flammability / Reaction to Fire | UL 1685 UL Loading, IEEE 1202, FT4 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 336, Article 760, NPLF, TC |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Armor | No |
| Composite | No |
| Conductor Count | 2 Conductor |
| Conductor Material | Tinned Or Coated Copper |
| Conductor Size | 16 Awg |
| Conductor Type | Stranded |
| Earth/Ground Wires | No |
| Jacket Material | PVC-Polyvinyl Chloride |
| Insulation Material | Pvc/Nyl-Polyvinyl Chloride/Nylon |
| Product Type | Vntc Control |
| Screen/Shield | Unshielded |
| Voltage Range | 600V |
| UNSPC Code | 26121603 |
