Brand: Belden
|
SKU:
323-012-2203-B-DY0

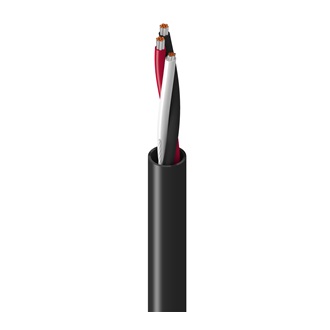

Belden 9491 0602500 | High Performance Instrumentation, 1 Triad# 22 Stranded TC, PVC Insulation E1, PVC Jacket, PLTC
Regular price
$3.00
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9491 0602500 | High Performance Instrumentation, 1 Triad# 22...
Regular price
$3.00
Unit price
Brand: Belden
|
SKU:
323-012-2203-B-DY0
Regular price
$3.00
Unit price
Description
Description
Belden 9491 0602500 | High Performance Instrumentation, 1 Triad# 22 Stranded TC, PVC Insulation E1, PVC Jacket, PLTC
High Performance Instrumentation, 1 Triad 22AWG (7x30) Tinned Copper, PVC Insulation E1 Color Code, PVC Outer Jacket, PLTC.
Specifications
Specifications
Belden - 9491 0602500 - Specifications
| Element | Triad(s) |
|---|---|
| No. of Elements | 1 |
| Stranding | 7x30 |
| UL Temperature | 105°C |
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance |
| Flammability / Reaction to Fire | UL 1685 UL Loading, FT4, T-29-520, IEEE 1202 |
| NEC / UL Compliance | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| AWM Compliance | AWM 2464 |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Armor | No |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Insulation Material | PVC-Polyvinyl Chloride |
| Jacketing Material | PVC-Polyvinyl Chloride |
| Screen/Shield Type | Unshielded |
| Screen/Shield | No Shield |
| Thermocouple | No |
| UNSPC Code | 26121642 |
