Brand: Belden
|
SKU:
B9503-100

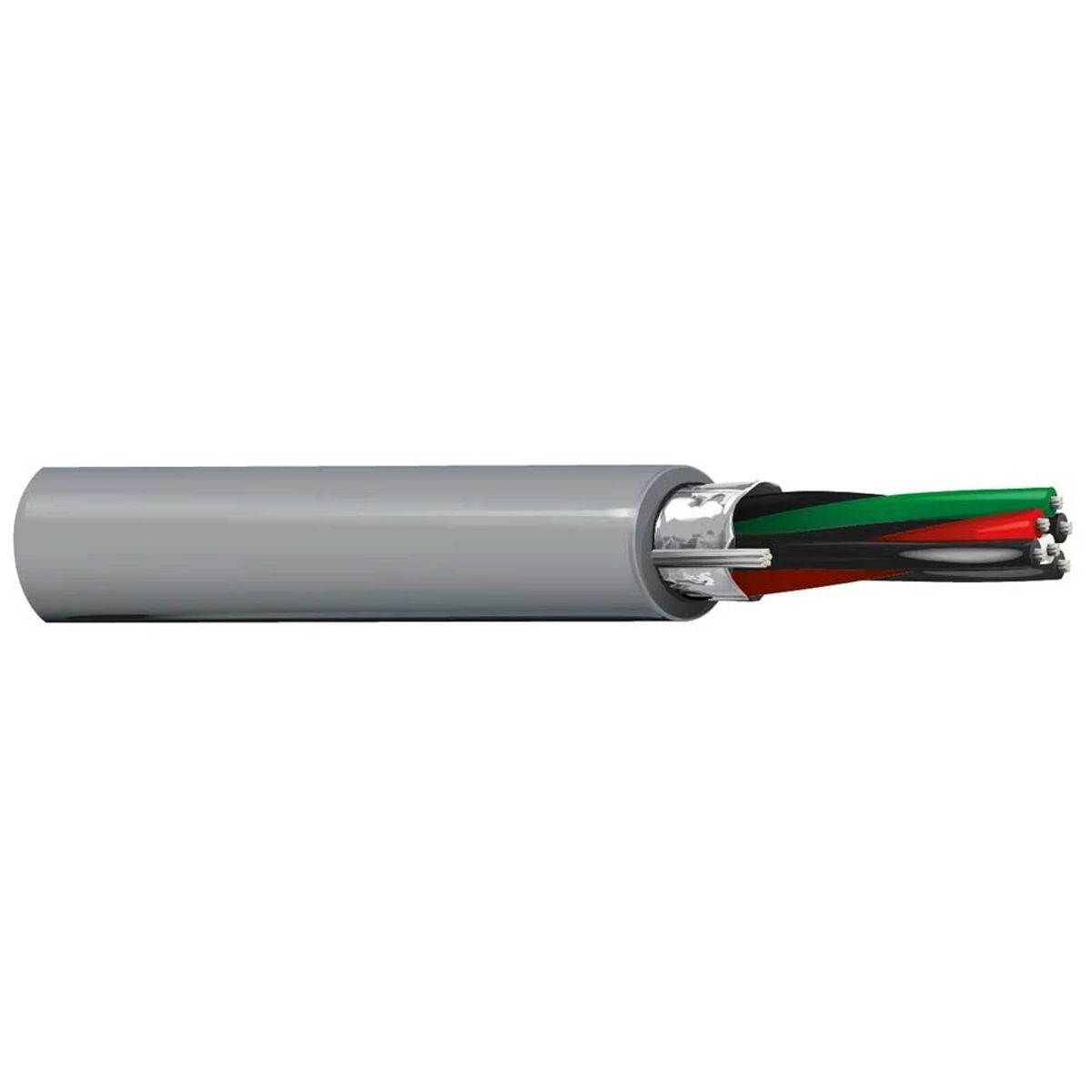

Belden 9503 060100 | 9503 Series, Multi-Conductor Cable, 6-Conductor, Polyvinyl Chloride Insulation, 24 AWG, Tinned Copper, Chrome, 100 ft.
Regular price
$4.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9503 060100 | 9503 Series, Multi-Conductor Cable, 6-Conducto...
Regular price
$4.59
Unit price
Description
Description
The 9503 060100 is a 3-pair Shielded Cable with 24AWG stranded tinned copper conductors and a semi-rigid PVC insulation. The 9503 series multi-conductor computer cable comes with an overall Beldfoil aluminum foil-polyester tape outer shield.
Key Features
- Beldfoil shield is lightweight, strong, flexible and thin, yet extremely effective
- 146.791N Maximum recommended pulling tension
- 98.43pF/m Nominal capacitance conductor to conductor
- 60% Nominal velocity of propagation
- 78.744?/km at 20°C Nominal conductor DC-resistance (DCR)
Specifications
Specifications
Standards
- NEC/(UL) Specification: CMG
- CEC/C(UL) Specification: CMG
- UL AWM Style: 2464 (300 V 80°C)
- CSA AWM Specification: AWM I A
- CPR Euroclass: Eca
Environmental Programs
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2003/96/EC (BFR): Yes
- EU Directive 2011/65/EU (ROHS II): Yes
- EU Directive 2012/19/EU (WEEE): Yes
- EU Directive Compliance: EU Directive 2003/11/EC (BFR)
- EU CE Mark: Yes
Flammability
- UL Flammability: UL1685 FT4 Loading
- UL voltage rating: 300 V RMS
Additional Specifications
| ECCN | EAR99 |
|---|---|
| Country of Origin | US - United States |
| UNSPSC | 26121600 |
| Series | 9503 Series |
| Length | 100 ft. |
| Cable Type | Non-Plenum |
| Conductor Size | 24 AWG |
| Conductor Material | Tinned Copper |
| Insulation Material | Polyvinyl Chloride |
| No. of Conductors | 6 |
| Shielded | Aluminum/Polyester |
