Brand: Belden
|
SKU:
B9512-5000
Belden 9512 0605000 | Multi-Conductor - 300V Power-Limited Tray Cable 2-Pair 22 Awg PVC FS PVC Chrome
Regular price
$4.26
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9512 0605000 | Multi-Conductor - 300V Power-Limited Tray Cab...
Regular price
$4.26
Unit price
Description
Description
Belden 9512 0605000 | Multi-Conductor - 300V Power-Limited Tray Cable 2-Pair 22 Awg PVC FS PVC Chrome

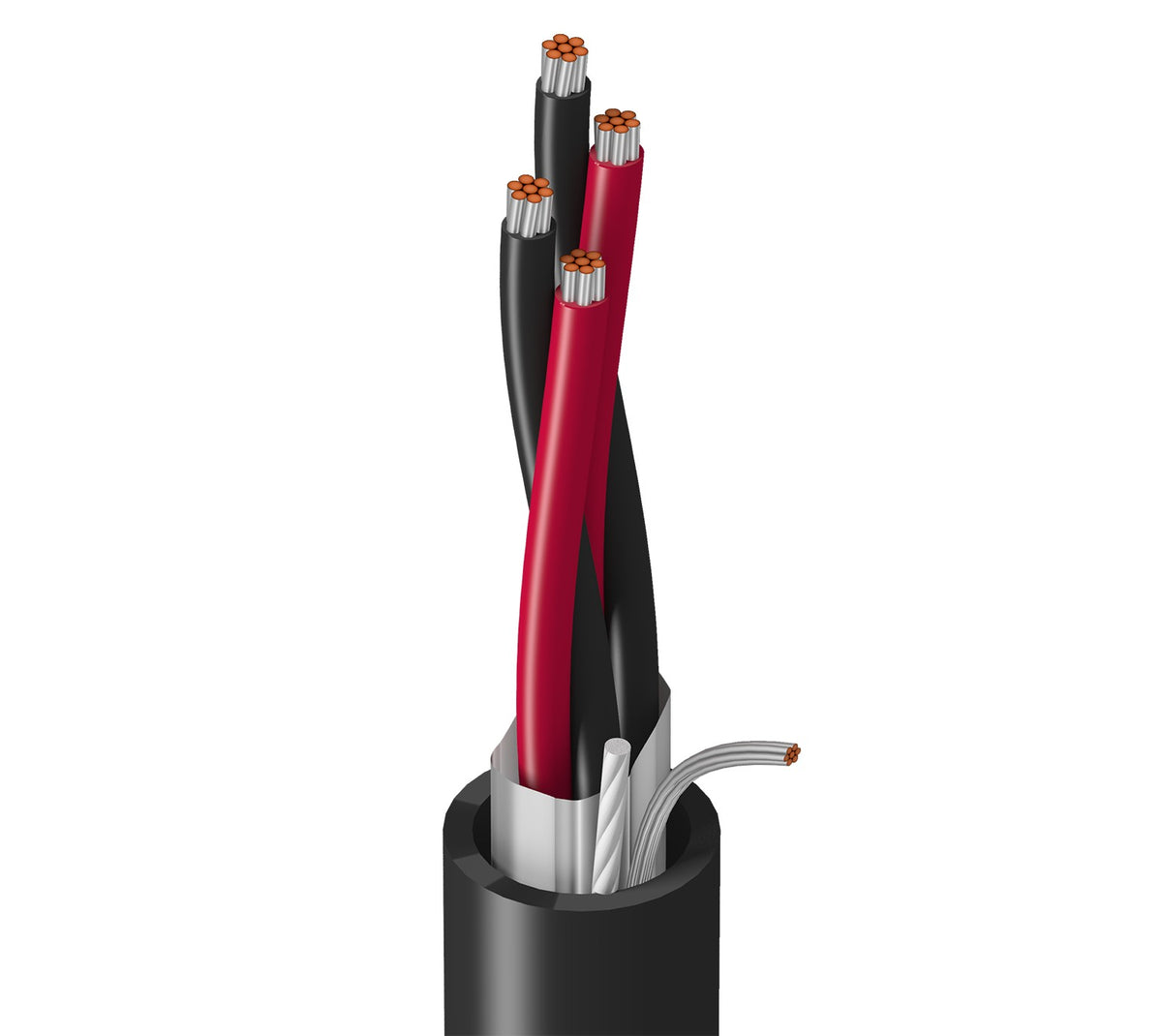

22 AWG pairs stranded (7x30) tinned copper conductors, twisted pairs, PVC insulation, overall Beldfoil shield (100% coverage), PVC jacket.
Specifications
Specifications
Belden - 9512 0605000 - Applications
- Instrumentation
- Sensors
- Valves
- Positioners
Belden - 9512 0605000 - Specifications
| Armor | No |
|---|---|
| Conductor Count | 2 Pair |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Insulation Material | PVC-Polyvinyl Chloride |
| Jacketing Material | PVC-Polyvinyl Chloride |
| Screen/Shield Type | Overall Aluminum Mylar Foil Shield |
| Screen/Shield | Yes - This Has A Shield |
| Thermocouple | No |
| UNSPSC Code | 26121642 |
| Color | Chrome |
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
| Stationary Min. | 3.0 in (76 mm) |
| Installation Min. | 3.0 in (76 mm) |
| Bulk Cable Weight | 38 lbs/1000ft |
| Flammability / Reaction to Fire | UL 1685 UL Loading, FT4, T-29-520, IEEE 1202 |
