Brand: Belden
|
SKU:
B9538-100

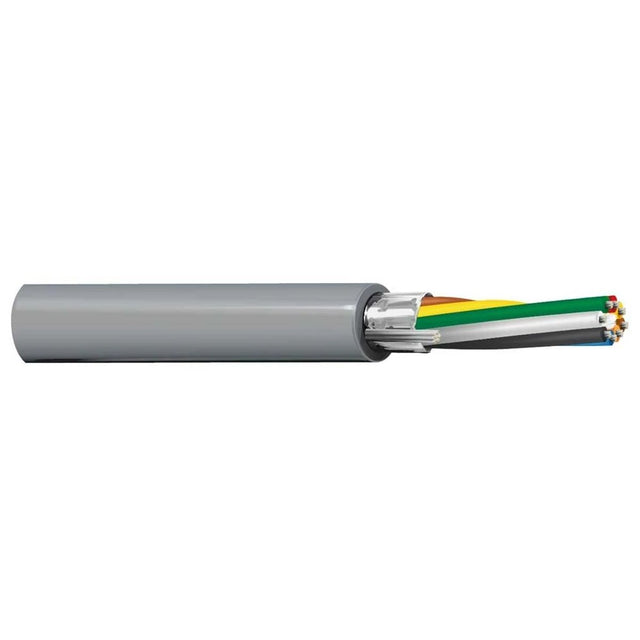

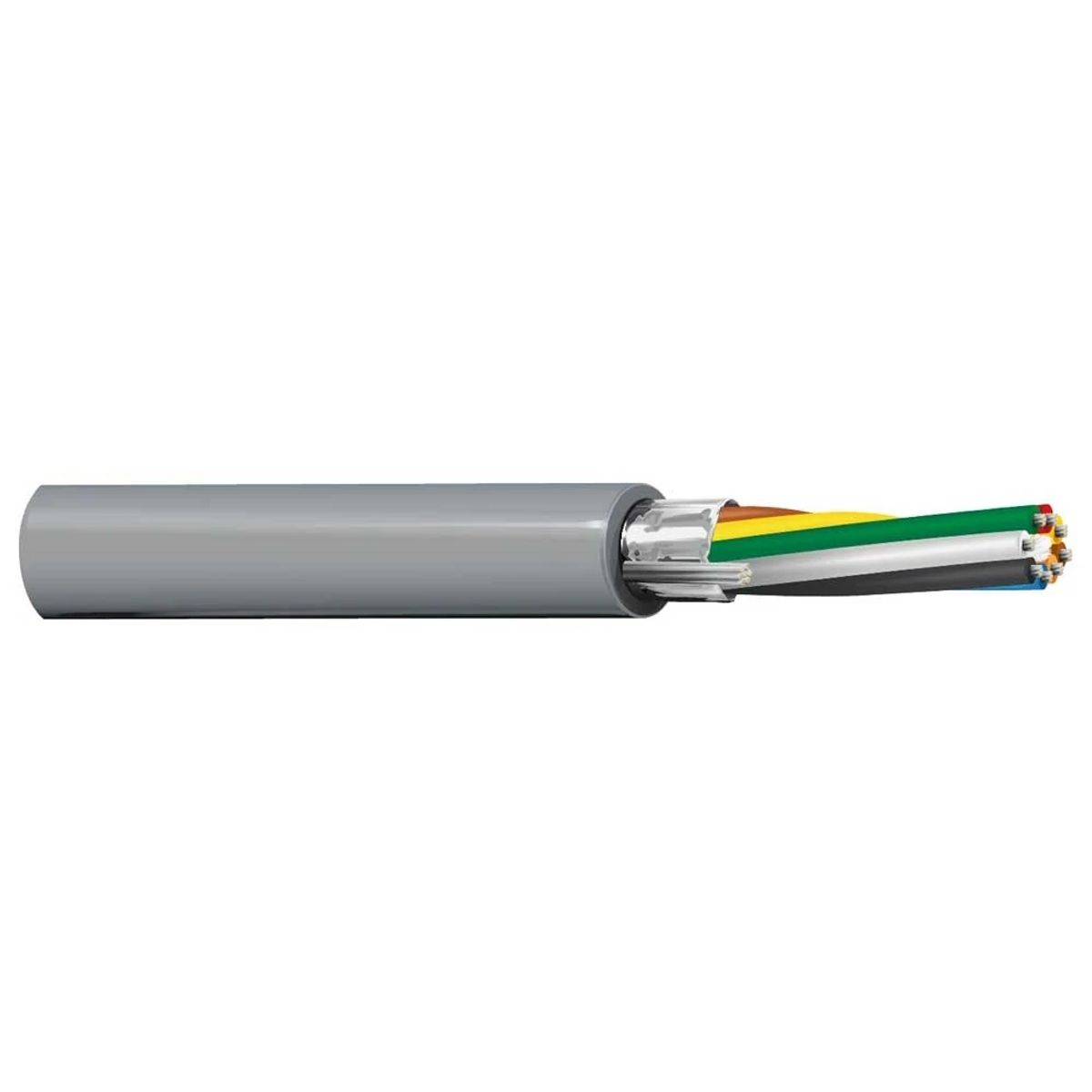

Belden 9538 060100 | 9538 Series, Multi-Conductor Cable, 8-Conductor, Polyvinyl Chloride Insulation, 24 AWG, Tinned Copper, Chrome, 100 ft.
Regular price
$5.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9538 060100 | 9538 Series, Multi-Conductor Cable, 8-Conducto...
Regular price
$5.29
Unit price
Description
Description
The 9538 060100 is a 100ft 8-conductor shielded Computer Cable with 24AWG stranded (7 x 32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil aluminum foil-polyester tape shield (100% coverage) and chrome PVC jacket.
Key Features
- 33pF/ft Conductor to conductor nominal capacitance
- 65pF/ft Conductor to other conductor and shield nominal capacitance
- 25?/1000ft at 20°C Nominal conductor DC-resistance
- 18?/1000ft at 20°C Nominal outer shield DC-resistance
- UL1685 FT4 Loading flame tested
Specifications
Specifications
Standards
- NEC Articles: 800
- NEC/(UL) Specification: CMG
- CEC/C(UL) Specification: CMG
- UL AWM Style: 2464 (300 V 80°C)
- CPR Euroclass: Eca
Environmental Programs
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2003/96/EC (BFR): Yes
- EU Directive 2011/65/EU (ROHS II): Yes
- EU Directive 2012/19/EU (WEEE): Yes
- EU Directive 2015/863/EU: Yes
- EU Directive Compliance: EU Directive 2003/11/EC (BFR)
- EU CE Mark: Yes
Flammability
- UL Flammability: UL1685 FT4 Loading
- UL voltage rating: 300 V RMS
Additional Specifications
| ECCN | EAR99 |
|---|---|
| Country of Origin | US - United States |
| UNSPSC | 26121500 |
| Series | 9538 Series |
| Length | 100 ft. |
| Cable Type | Non-Plenum |
| Conductor Size | 24 AWG |
| Conductor Material | Tinned Copper |
| Insulation Material | Polyvinyl Chloride |
| No. of Conductors | 8 |
| Shielded | Aluminum/Polyester |
