Brand: Belden | SKU: B9543

Belden 9543 0601000 | Computer Cable, PVC, Chrome, 24 AWG, 1000 Ft. L, 25-Conductors, Non-Plenum, Shielded

$12.28

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

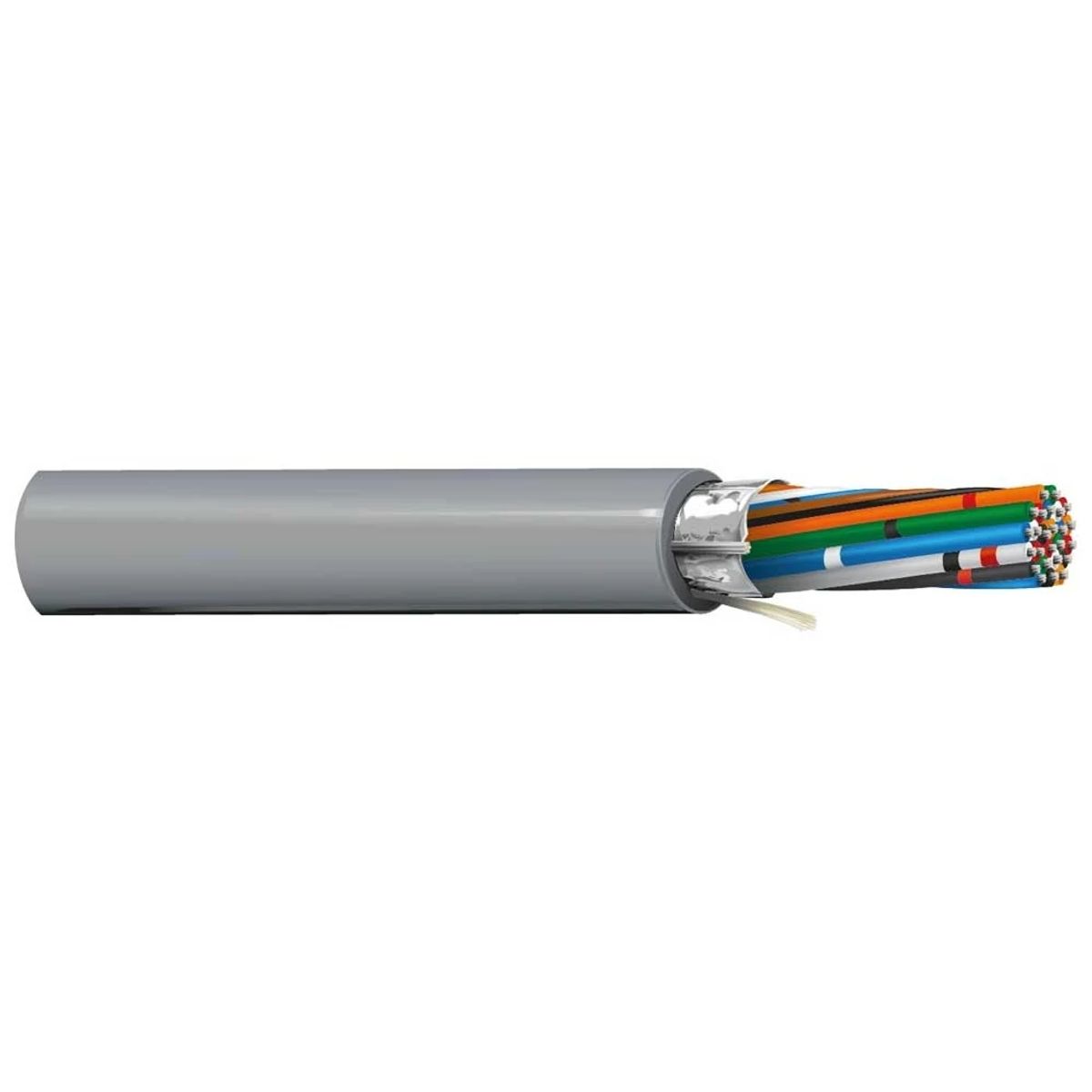

Computer EIA RS-232 cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Specifications

Temperature Range

UL Temp Rating: 80 °C (UL AWM Style 2464)
Operating Temp Range: -30 °C To +80°C

Mechanical Characteristics

Bulk Cable Weight: 78 lbs/1000 Ft.
Max Recommended Pulling Tension: 137.5 lbs
Min Bend Radius/Minor Axis: 3.5 in.

Standards

NEC/(UL) Specification: CMG
CEC/C(UL) Specification: CMG
UL AWM Style: 2464 (300 V 80 °C)
CPR Euroclass: Eca

Environmental Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU CE Mark: Yes
CA Prop 65 (CJ for Wire & Cable): Yes

Flammability

UL Flammability: UL1685 FT4 Loading
CSA Flammability: FT4
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Additional Specifications

ECCN	EAR99
Country of Origin	US - United States
UNSPSC	26121500
Color Family	Metallic
Length	1000 ft.
Color	Chrome
Conductor Size	24 AWG
Conductor Material	Tinned Copper
Jacket Material	PVC
Insulation Material	Semi-Rigid PVC
No. of Conductors	25
Shielded	Aluminum Polyester

Documents and Downloads

Belden ENT 9543 0601000 Data Sheet
