Brand: Belden
|
SKU:
B9545-DY0
Belden 9545 | Computer EIA RS-232 Cable, #24-40c, SR-PVC, O/A Foil, PVC Jacket, CMG
Regular price
$7.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9545 | Computer EIA RS-232 Cable, #24-40c, SR-PVC, O/A Foil,...
Regular price
$7.15
Unit price
Description
Description
Belden 9545 | Computer EIA RS-232 Cable, #24-40c, SR-PVC, O/A Foil, PVC Jacket, CMG

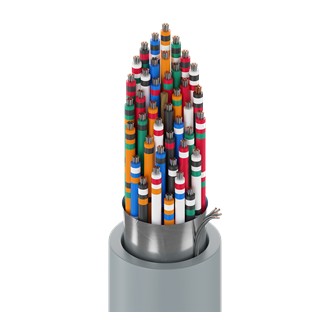

Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
Specifications
Specifications
Belden - 9545 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 40 |
| Size | 24 AWG |
| Stranding | 7x32 |
| UL Temperature | 60°C (UL CMG);80°C (UL AWM 2464) |
| Stationary Min. | 4.9 in (120 mm) |
| Installation Min. | 4.9 in (120 mm) |
| Max. Pull Tension | 226 lbs (103 kg) |
| Bulk Cable Weight | 120 lbs/1000ft |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 2464 |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
