Brand: Belden
|
SKU:
B9730-DYBLK
Belden 9730 | Computer EIA RS-232/422, Digital Audio Cable, #24-3 Pair, FPE, Indiv. Foil, PVC Jacket, CM, 100?
Regular price
$6.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9730 | Computer EIA RS-232/422, Digital Audio Cable, #24-3 P...
Regular price
$6.76
Unit price
Description
Description

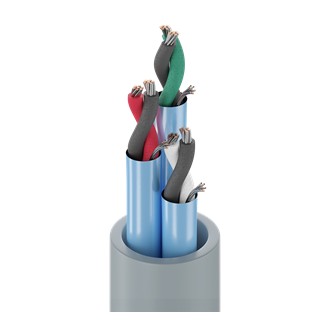

Belden 9730 | Computer EIA RS-232/422, Digital Audio Cable, #24-3 Pair, FPE, Indiv. Foil, PVC Jacket, CM, 100?
Computer EIA RS-232/422, Digital Audio Cable, 3-Pair, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, individually shielded with Beldfoil® (100% coverage), 24 AWG stranded tinned copper drain wire, overall PVC jacket.
Specifications
Specifications
Belden - 9730 - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 3 |
| Size | 24 AWG |
| Stranding | 7x32 |
| UL Temperature | 80°C |
| Stationary Min. | 3.3 in (84 mm) |
| Installation Min. | 3.3 in (84 mm) |
| Max. Pull Tension | 51 lbs (23 kg) |
| Bulk Cable Weight | 42 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CM |
| AWM Compliance | AWM 2919 |
| CEC / C(UL) Compliance | CM |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | P-MW-MS285 |
| Plenum Number | 89730 |
