Brand: Belden | SKU: B9768

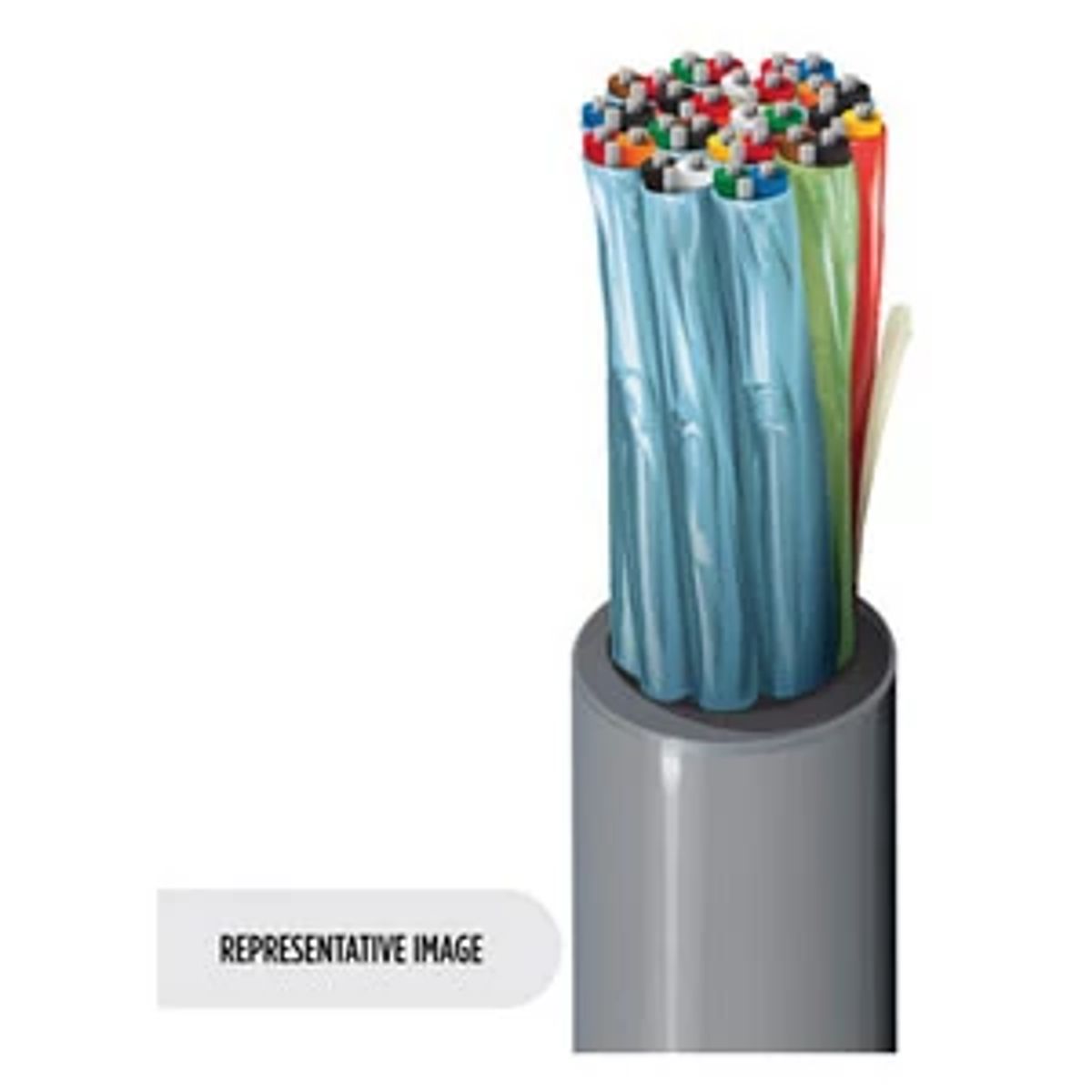

Belden 9768 0601000 | 9768 Series, Multi-Conductor Cable, 24-Conductor, Polypropylene Insulation, 22 AWG, Tinned Copper, Chrome, 1000 ft.

$23.72

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Belden ENT 9768 0601000 | 9768 Series, Multi-Conductor Cable, 24-Conductor, Polypropylene Insulation, 22 AWG, Tinned Copper, Chrome, 1000 ft.

Specifications

Standards

NEC/(UL) Specification: CM
CEC/C(UL) Specification: CM
UL AWM Style: 2919 (30 V 80°C)
CPR Euroclass: Eca

Environmental Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes

Flammability

UL Flammability: UL1685 UL Loading
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 30 V RMS (UL AWM Style 2919)

Additional Specifications

ECCN	EAR99
Country of Origin	US - United States
UNSPSC	26121600
Series	9768 Series
Length	1000 ft.
Cable Type	Non-Plenum
Conductor Size	22 AWG
Conductor Material	Tinned Copper
Jacket Material	Polyvinyl Chloride
Insulation Material	Polypropylene
No. of Conductors	24
Shielded	Aluminum/Polyester

Documents and Downloads
