Brand: Belden
|
SKU:
B9806-DY0

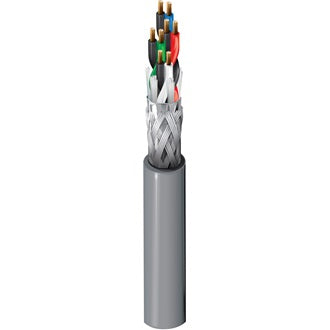

Belden 9806 0601000 | Computer EIA RS-232/422 Cable, #28-4 Pair, PP, O/A Foil+Braid, PVC Jacket, CL2, 100?
Regular price
$8.75
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9806 0601000 | Computer EIA RS-232/422 Cable, #28-4 Pair, PP...
Regular price
$8.75
Unit price
Description
Description
Belden 9806 0601000 | Computer EIA RS-232/422 Cable, #28-4 Pair, PP, O/A Foil+Braid, PVC Jacket, CL2, 100?
Computer EIA RS-232/422 Cable, 4-Pair, 28 AWG stranded (7x36) tinned copper conductors, polypropylene insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (90% coverage), 28 AWG stranded tinned copper drain wire, PVC jacket.
Specifications
Specifications
Belden - 9806 0601000 - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 4 |
| Stranding | 7x36 |
| UL Temperature | 60°C |
| Stationary Min. | 2.3 in (58 mm) |
| Installation Min. | 2.3 in (58 mm) |
| Max. Pull Tension | 54 lbs (24 kg) |
| Bulk Cable Weight | 35 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 725, CL2 |
| AWM Compliance | AWM 2960 |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Conductor Count | 4 Pairs |
| Conductor Material | Tinned Copper |
| Conductor Size | 28 Awg (American Wire Guage) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | Pp-Polypropylene |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 725 Class 2 |
| Screen/Shield Type | Braid Over Foil Shield |
| Screen/Shield | Yes |
| Shield Construction | Overall Isolated From Indv |
| UNSPC Code | 26121613 |
