Brand: Belden
|
SKU:
B9841-1000/RED

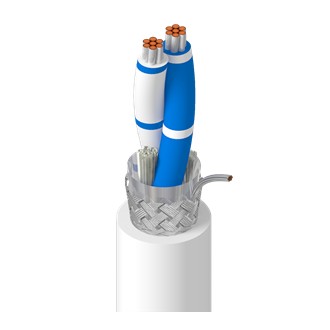

Belden 9841 0601000 | RS485, 1 Pair #24 Stranded TC, PE Insulation, OS+TC Braid, PVC Jacket, CM
Regular price
$5.04
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9841 0601000 | RS485, 1 Pair #24 Stranded TC, PE Insulation,...
Regular price
$5.04
Unit price
Description
Description
Belden 9841 0601000 | RS485, 1 Pair #24 Stranded TC, PE Insulation, OS+TC Braid, PVC Jacket, CM
RS-485, 1 Pair 24AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, PVC Outer Jacket, CM.
Belden - 9841 0601000 - Features
- Indoor suitability
- Overall cabling lay length - 2.5 Inch, overall cabling lay direction - left hand, overall cabling lay twists - 4.8 twist/ft
Specifications
Specifications
Belden - 9841 0601000 - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Stranding | 7x32 |
| UL Temperature | 80°C |
| Stationary Min. | 2.5 in (64 mm) |
| Installation Min. | 2.5 in (64 mm) |
| Max. Pull Tension | 72.3 lbs (32.8 kg) |
| Bulk Cable Weight | 36 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | UL 1685 UL Loading, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance | Article 800, CM |
| AWM Compliance | AWM 2919 |
| CEC / C(UL) Compliance | CM |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | DMX-512 |
| Plenum Number | 82841, 89841 |
| Non-Plenum Number | 9841ZH |
| Conductor Count | 1 Pair |
| Conductor Material | Tinned Copper |
| Conductor Size | 24 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | PE-Polyethylene |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 |
| Screen/Shield Type | Braid Over Foil Shield |
| Screen/Shield | Yes |
| Shield Construction | Overall Foil &Amp Braid |
| UNSPC Code | 26121613 |
