Belden 9910 | Lead Wire, #10 Stranded TC, PVC Insulation, AWM 1015 ...
Regular price
$7.08
Unit price
Brand: Belden
|
SKU:
B9910-9-DY54
Regular price
$7.08
Unit price
Description
Description

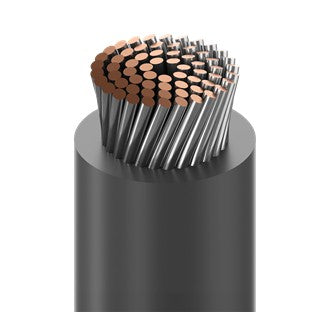

Belden 9910 | Lead Wire, #10 Stranded TC, PVC Insulation, AWM 1015 AWM 1230
Low Temp Plastic Lead Wire, 10AWG (65x28) Tinned Copper, PVC Insulation, AWM 1015 AWM 1230 CSA TYPE TEW JQA-F 600V 105C.
Specifications
Specifications
Belden - 9910 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 10 AWG |
| Stranding | 65x28 |
| UL Temperature | 105°C |
| Environmental Suitability | Indoor, Outdoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | VW-1 |
| NEC / UL Compliance | Article 310, MTW or TW |
| AWM Compliance | AWM 1015, AWM 1230, CSA AWM I A/B |
| CEC / C(UL) Compliance | TEW |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
