Brand: Belden
|
SKU:
B9912-98

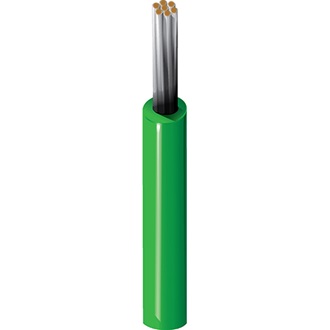

Belden 9912 0092000 | Lead Wire, #12 Stranded TC, PVC Insulation, AWM 1015 AWM 1230
Regular price
$3.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9912 0092000 | Lead Wire, #12 Stranded TC, PVC Insulation, A...
Regular price
$3.98
Unit price
Description
Description
Belden 9912 0092000 | Lead Wire, #12 Stranded TC, PVC Insulation, AWM 1015 AWM 1230
Low Temp Plastic Lead Wire, 12AWG (65x30) Tinned Copper, PVC Insulation, AWM 1015 AWM 1230 CSA TYPE TEW JQA-F 600V 105C.
Specifications
Specifications
Belden - 9912 0092000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 12 AWG |
| Stranding | 65x30 |
| UL Temperature | 105°C |
| Environmental Suitability | Indoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | VW-1 |
| NEC / UL Compliance | Article 310, MTW or TW |
| AWM Compliance | AWM 1015, AWM 1230, AWM I A/B |
| CEC / C(UL) Compliance | TEW |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| Conductor Material | Tinned Copper |
| Conductor Size | 12 Awg (American Wire Gauge) |
| Conductor Stranding | 65 Strands In Each Conductor |
| Insulation Color | White |
| Insulation Material | PVC-Polyvinyl Chloride |
| Product Type | Ul Styles 1000-1999 |
| Rohs Compliant | Yes |
| Shielded | Not Shielded |
| Temperature Rating | 105 Degrees Centigrade (221 F) |
| Ul Style | Ul Type Awm, Style 1015 |
| UNSPC Code | 26121539 |
