Brand: Belden
|
SKU:
B9924-96

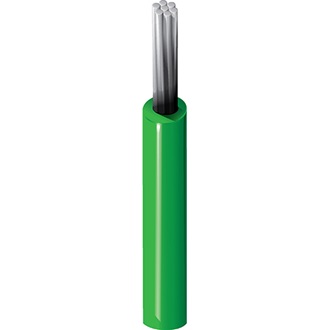

Belden 9924 0091000 | Lead Wire, #24 Stranded TC, PVC Insulation, AWM 1015 AWM 1230
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9924 0091000 | Lead Wire, #24 Stranded TC, PVC Insulation, A...
Regular price
$1.46
Unit price
Description
Description
Belden 9924 0091000 | Lead Wire, #24 Stranded TC, PVC Insulation, AWM 1015 AWM 1230
Low Temp Plastic Lead Wire, 24AWG (7x32) Tinned Copper, PVC Insulation, AWM 1015 AWM 1230 CSA TYPE TEW JQA-F 600V 105C.
Specifications
Specifications
Belden - 9924 0091000 - Specifications
| Stranding | 7x32 |
|---|---|
| Material | TC - Tinned Copper |
| No. of Conductors | 1 |
| Bulk Cable Weight | 4.7 lbs/1000ft |
| Min. Bend Radius/Minor Axis | 0.36 in |
| Conductor Material | Tinned Copper |
| Conductor Size | 24 Awg (American Wire Gauge) |
| Conductor Stranding | 7 Strands In Each Conductor |
| Insulation Color | White |
| Insulation Material | PVC-Polyvinyl Chloride |
| Product Type | Ul Styles 1000-1999 |
| Rohs Compliant | Yes |
| Shielded | Not Shielded |
| Temperature Rating | 105 Degrees Centigrade (221 F) |
| Ul Style | Ul Type Awm, Style 1015 |
| UNSPC Code | 26121539 |
