Brand: Belden
|
SKU:
B9927-DY0
Belden 9927 0601000 | RS232/423 Low Cap, #24-4C, FPO, O/A Foil+Braid, PVC Jacket, CM
Regular price
$4.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 9927 0601000 | RS232/423 Low Cap, #24-4C, FPO, O/A Foil+Brai...
Regular price
$4.44
Unit price
Description
Description
Belden 9927 0601000 | RS232/423 Low Cap, #24-4C, FPO, O/A Foil+Braid, PVC Jacket, CM

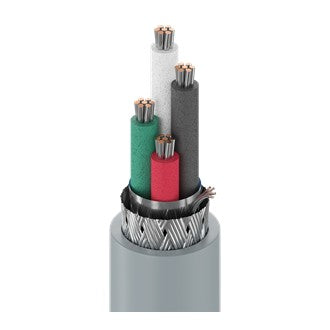

Computer EIA RS-232/423 Cable, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), drain wire, PVC jacket.
Specifications
Specifications
Belden - 9927 0601000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 4 |
| Stranding | 7x32 |
| UL Temperature | 60°C (UL CM);80°C (UL AWM 2464) |
| Stationary Min. | 2.5 in (64 mm) |
| Installation Min. | 2.5 in (64 mm) |
| Max. Pull Tension | 50 lbs (23 kg) |
| Bulk Cable Weight | 27 lbs/1000ft |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | UL 1685 UL loading , IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CM |
| AWM Compliance | AWM 2919 |
| CEC / C(UL) Compliance | CM |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Conductor Count | 4 Conductors |
| Conductor Material | Tinned Copper |
| Conductor Size | 24 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | FPE-Foamed Polyethylene |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 |
| Screen/Shield Type | Braid Over Foil Shield |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121613 |
